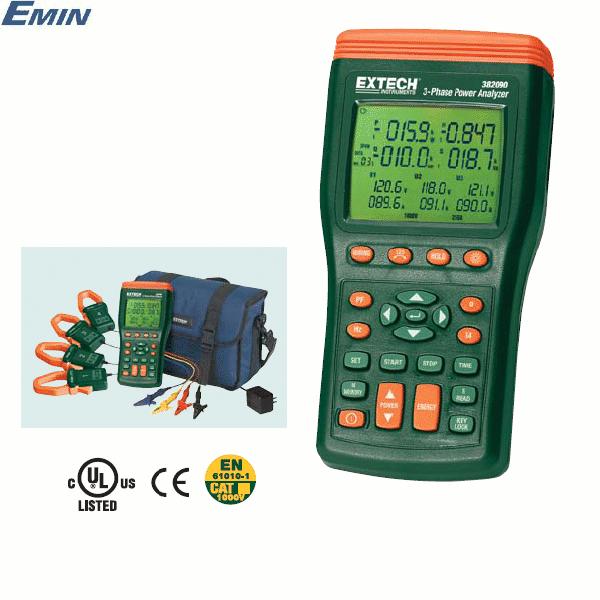

Extech 382091 3-Phase Power Analyzer/Datalogger (50 Hz) (1000A)

General

ACV (True rms)

999.9V ±(0.5%rdg+10d)

ACA

1000A ±(1%rdg+15d)

Active Power (kW)

999.9kW ±(1.5%rdg+20d)

Apparent Power (kVA)

999.9kVA ±(1.5%rdg+20d)

Reactive Power (kVAR)

999.9kVAR ±(1.5%rdg+20d)

Power Factor

-1.000 to +1.000 ±(3%rdg+30d)

Frequency

60Hz to 100Hz ±(0.5%rdg+1d)

Phase

+90.0°~ 0°~ -90.0° ±3°

Active Power Energy (kWh)

0.0kWh to 119.3MWh ±(1.5%rdg+20d)

Apparent Power Energy (kVAh)

0.0kVAh to 119.3MVAh ±(1.5%rdg+20d)

Reactive Power Energy (kVARh)

0.0kVARh to 119.3MVARh ±(1.5%rdg+20d)

Harmonics

1 to 31 (with the software) ±(1.5%rdg+20d)

Datalogging

20,000 reading

Dimensions

9.25 x 4.5 x 2.1" (235 x 116 x 54mm)

Weight

Meter: 25.8oz (730g); Clamp: 11.8oz (333g)
