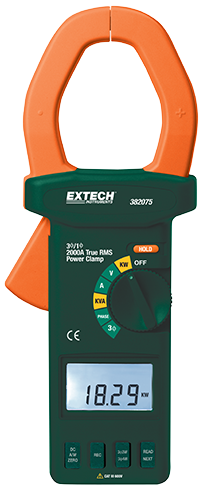

EXTECH 382075 True RMS AC/DC 3-Phase Clamp-on Power Analyzer

True RMS Power (W): 1200kW /0.01/0.1kW /±2%

Reactve (KVAR) Power: 1200KVAR /0.01/0.1KVAR /±2% (PF<0.91)

Apparent (KVA) Power: 1200KVA /0.01/0.1KVA /±2%

Power Factor (PF): 0.2 to 1 /0.01 /PF=W/(VxA)

Phase Angle (f): -90° to +90° /0.1° /±0.5°

AC/DC Current: 2000A /0.1/1A /±2%

AC/DC Voltage: 600VAC/800VDC /0.1/1V /±2%

Frequency: 40 to 400Hz /0.1Hz/ ±1%

Dimensions/Weight: 271 x 122 x 46mm / 24.7oz (700g)

Complete with test leads, carrying case, and 9V battery
