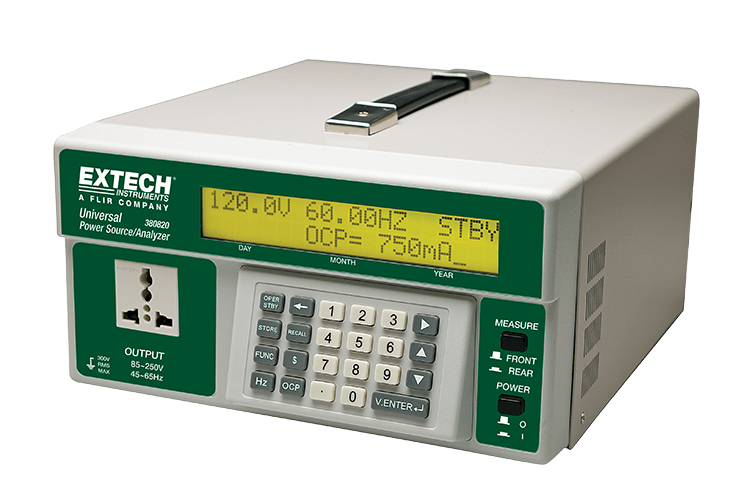

EXTECH 380820 Universal AC Power Source + AC Power Analyzer

Front Panel

Output Voltage: 85 to 250V (adjustable) /0.1V /±1%

Output Frequency: 45 to 65Hz (adjustable) /0.01Hz /±0.1Hz

Power: 10mW to 100W /0.1mW /±(1% + 0.05W)

AC Current: 5mA to 1.5A /0.1mA /±1%

Power Factor: 0 to 1 /0.001 /±0.04

Rear Panel

Output Voltage: line voltage /0.1V /±1%

Output Frequency: line frequency /0.01Hz /±0.1Hz

Power:100mW to 2000W /0.1mW/±(1% + 0.5W)

AC Current: 5mA to 10A /0.1mA /±1%

Power Factor: 0 to 1 /0.001 /±0.04

Harmonics (in amps): 1 to 50th order/ 0.1mA /±1.4% (1-10th)

THD: 0.0 to 999.9% 0.1%

Input Power Source: 110 or 220V; 45 to 65Hz

Dimension: 12 x 10.2 x 5.9" (305 x 260 x 151mm)

Weight: 21.8lbs (9.9kg)

Complete with AC power cord, RS-232 to USB cable and software

Features:

• Standby Power Measurement (10mW to 100W) for desktop and notebook PCs, LCD TVs, AC adaptor/chargers, and any other products that continue to use power when connected to AC, even though they are not in use
• Standard Power Measurement
  • 100mW to 1000W (110V)
  • 100mW to 2000W (220V)
• Power Quality Measurement (Watts, Power Factor, Voltage, Current, Harmonics)
• Cost Function calculates cost per day, month, and year
• 99 memory locations for preset voltage and frequency output settings
• Standby and Operation button
• User-programmable Over Current Protection (current limiting)
• Programmable through the built-in RS-232 interface
• Data acquisition mode captures readings to your PC with a user-programmable sampling rate of 2 to 65,535 seconds
• Complete with AC power cord, RS-232 to USB cable and software
