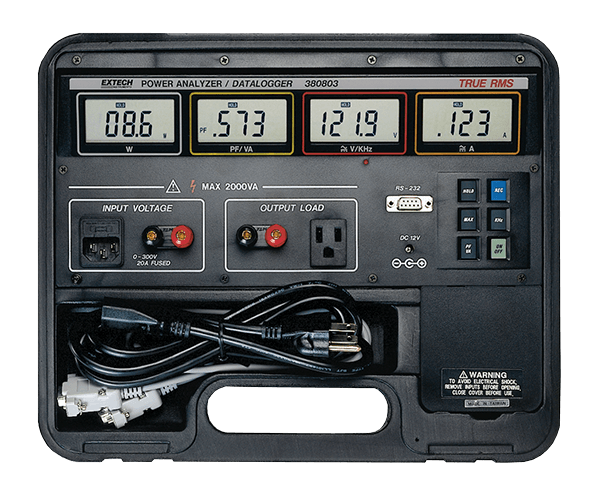

EXTECH 380803 True RMS Power Analyzer Datalogger

Watt: 200/2000W /0.1/1W/ ±0.9%

Power Factor: 0.5 to 1.0 /0.001 (Based on W, V, A)

Voltage: 200.0/750V /0.1/1V /±(0.5%)

Current: 2/20A via terminals /±(0.5%)

2/15A via sockets

Frequency: 40Hz to 20kHz /1Hz to 10Hz /±(0.5%)

Built-in Datalogger stores up to 1,012 readings (Single record storage or continuous datalogging)

Dimensions/Weight: 352 x 300 x 100mm / 3.6 lbs. (1.6 kg)

Complete with Windows compatible software, cable, 8 x AA batteries, power cord, 117 VAC adaptor and case

Datasheet

Manual
