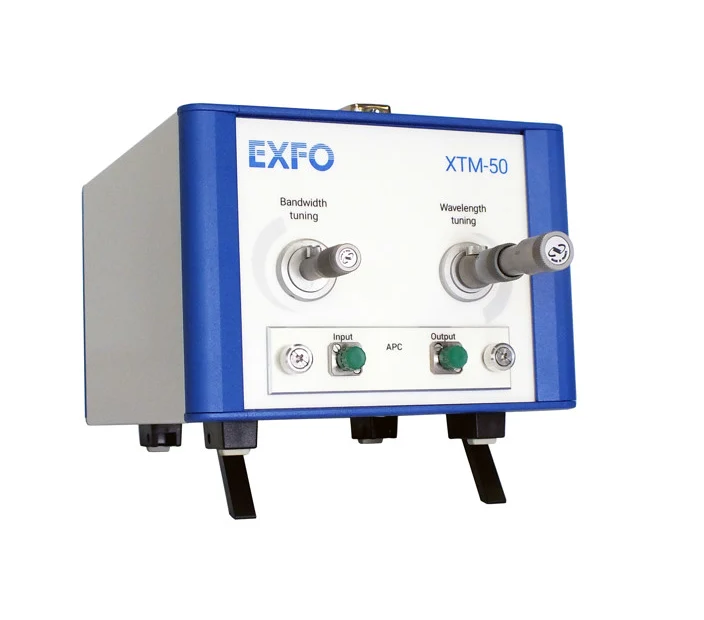

EXFO XTM-50 standard Tunable filter with adjustable bandwith (1450 to 1650 nm)

SPECIFICATIONS:

Optical characteristics:

Wavelength range (nm) : 1450 to 1650

Wavelength resolution (pm): 5

Bandwidth (FWHM):

Minimum: 50 pm (6.25GHz)

Maximum: 950 pm (120 GHz)

Bandwidth resolution : 1pm

Filter edge gradient : 500 dB/nm typical

Insertion loss : 5 dB (4.5 dB typical)

Flatness (dB) : 0.2

Polarization dependent loss (dB) : ±0.2

Out-of-band suppression (crosstalk): 40 dB (60 dB typical)

Interface Optical fiber type : SMF or PMF

Connector type : FC/PC or FC/APC

Operating conditions:

Temperature range : 15 °C to 35 °C (59 °F to 95 °F)

Maximum optical input power (dBm) : 30

Size:

Dimensions (W x D x H) : 193 mm x 231 mm x 139 mm (7.6 in x 9.1 in x 5.5 in)

Weight: 3.5 kg (7.7 lbs)
