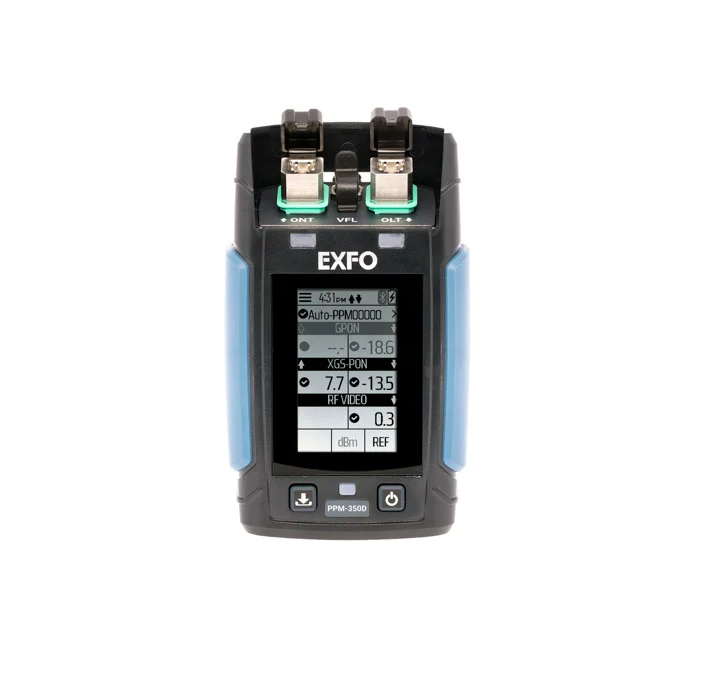

EXFO PPM-350D PON power meter

GENERAL SPECIFICATIONS

Storage capacity: Up to 3500 results

Battery autonomy: 8 hours of continuous use

Battery charge time (hours): < 2

Display resolution (dBm): 0.01

Measurement units: dB, dBm

Dimensions (H x W x D): 154 mm x 88 mm x 41 mm (6 1/16 in x 3 1/2 in x 1 5/8 in)

Display size: 69 mm (2.7 in)

Weight: 420 g (0.93 lb) a

Display type: Reflective

Display pixel count: 400 x 240

Temperature:

Operating: 0 °C to 50 °C (32 °F to 122 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Connector: USB type C

Connectivity: Bluetooth low energy

Smart device OS compatibility: Android 6 and above, iOS 11 and above
