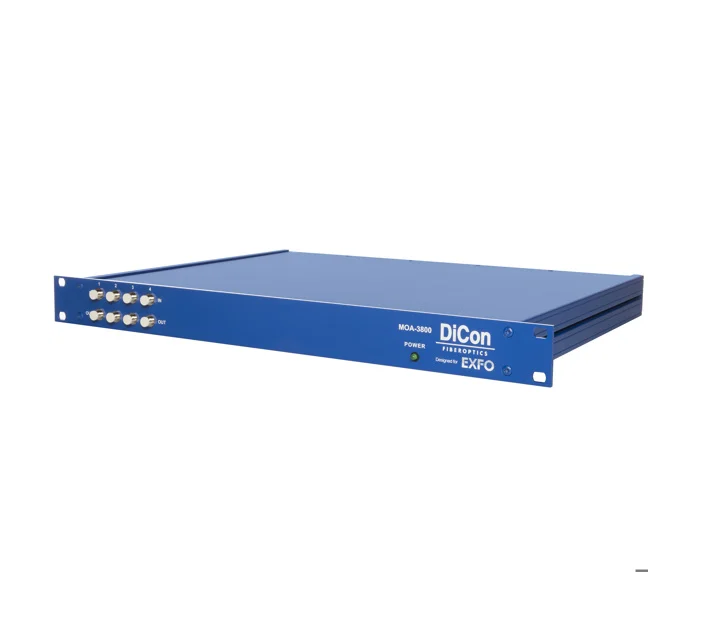

EXFO MOA-3800 Variable optical attenuator (Single mode, 40 dB min.)

PARAMETER RATING

Attenuation Range: 40 dB min.

Dynamic Power Range: -32 to 13 dBm

Output Accuracy: +/- 0.3 dB max.

Tuning Resolution: 0.01 dB

Excess Loss: VOA Only: 0.8 dB max; Self-Adjusting 1.6 dB max

WDL of VOA Only:

0 - 5 dB: 0.2 dB max.

5 - 10 dB: 0.3 dB max.

10 - 20 dB: 0.7 dB max.

WDL of Self-Adjusting

0 - 10 dB: 0.5 dB max.

10 - 20 dB: 0.7 dB max.

PDL:

0 - 15 dB: 0.15 dB max.

15 - 20 dB: 0.2 dB max.

Back Reflection :-50 dB max.

Optical Power: VOA Only: 500 mW Max.; Self-Adjusting: 200 mW Max.

Operating Temperature: 0 to 50 °C

Storage Temperature: -20 to 60 °C

Relative Humidity: 0% to 80% non-condensing

Repeatability: 0.1 dB max.

Durability: 1 x 109 cycles min.

Fiber Type: 9/125 um singlemode

Operating Wavelength Range : 1290 - 1650 nm
