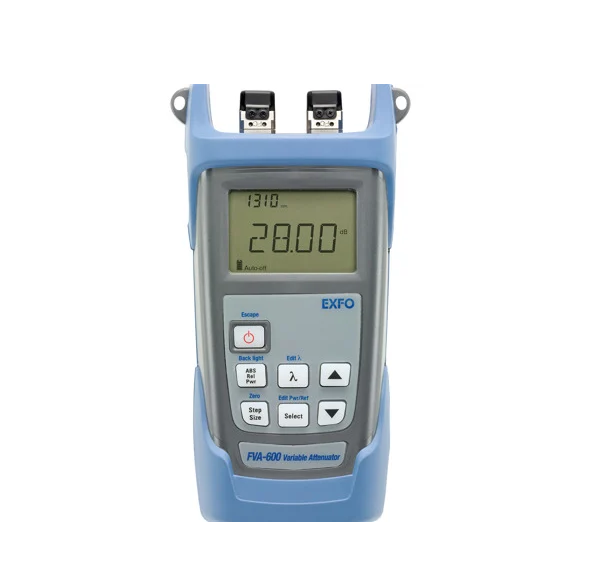

EXFO FVA-600 Variable Attenuator (1250 to 1625nm)

SPECIFICATIONS

Fiber type (μm): 9/125

Calibration wavelengths (nm): 1310/1550

Wavelength range (nm): 1250 to 1625

Wavelength increment (nm): 1

Maximum attenuation (dB): 65

IL (dB): ≤1.5

Resolution (dB): 0.01

Linearity (dB): ±0.1

Repeatability 2σ (dB): ±0.1

Optical return loss (dB) : >50

Max. input power (dBm): 24

Battery life (hours): >300

GENERAL SPECIFICATIONS

Size (H x W x D) 190 mm x 100 mm x 62 mm (7 ½ in x 4 in x 2 ½ in)

Weight 0.6 kg (1.3 lb)

Temperature

Operating: –10 °C to 50 °C (14 °F to 122 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity 0 % to 95 % non-condensing

Power AC adapter and rechargeable Li-ion battery

Datasheet
