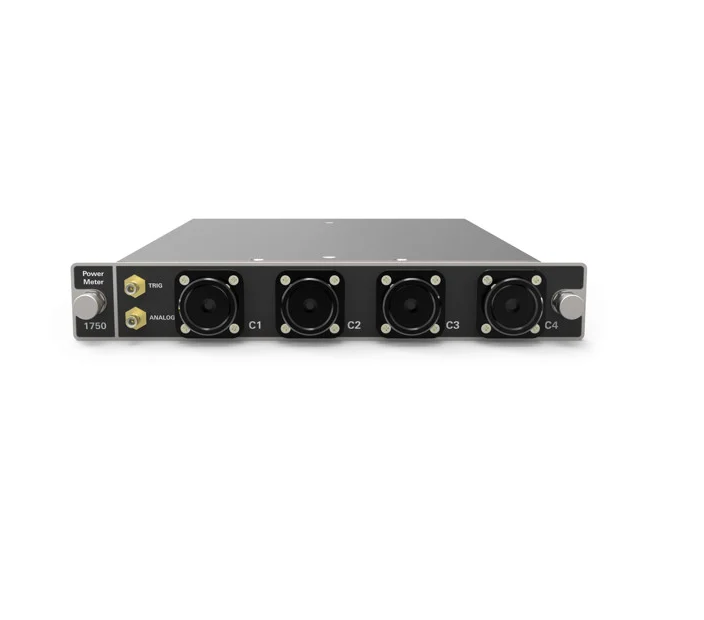

EXFO FTBx-1750-ISP-1 High-performance power meter (800 to 1700 nm, 25 to –55 dBm)

Number of detectors : 1

Detector type: InGaAs and integrating cavity

Detector size: 9 mm input aperture

Wavelength range (nm) : 800 to 1700

Power range (dBm) (typical) : 25 to –55

Uncertainty : ±(5% + 3 nW)

Uniformity (dB) : ±0.05

Polarization‑dependent responsivity (dB) : ±0.008 typical

Linearity : ±0.015 dB (5 dBm to –38 dBm); ±0.075 dB (23 dBm to 5 dBm)

Wavelength resolution (nm) : 0.01

Stabilization time (ms) (typical) : 0.4

Sampling rate (sample/s/channel): Up to 5208

Trigger input voltage (Vdc): 0-5 (TTL - type)

Analog output voltage (Vdc) (typical): 0-5

Fiber type (µm) : 5/125 to 62.5/125
