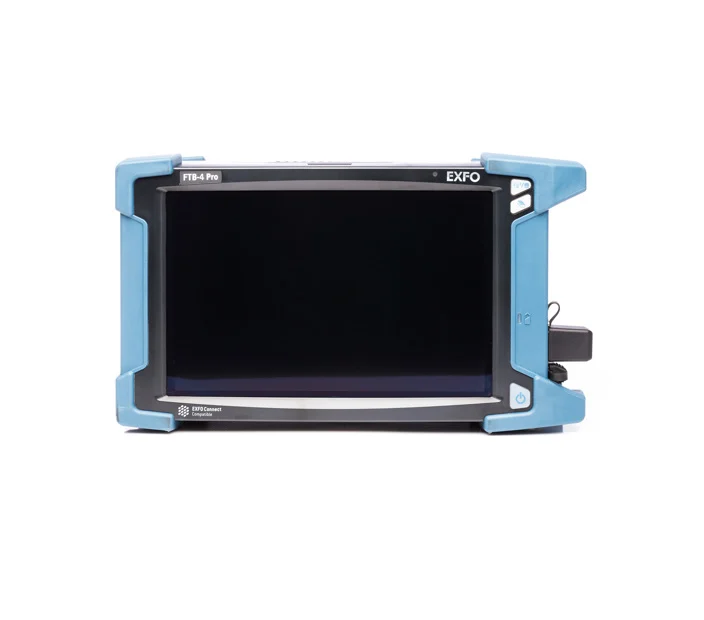

EXFO FTB-4 Pro Test platform

TECHNICAL SPECIFICATIONS

Mainframe: Quad-core processor / 4 GB RAM / Windows 10

Display: Touchscreen, color, 1280 × 800 TFT 256 mm (10.1 in)

Interfaces: RJ45 LAN 10/100/1000 Mbit/s; USB 2.0 ports (2); USB 3.0 port (1); Display port; 3.5 mm headset/microphone port

Storage (internal flash memory): 128 GB

Battery (not included): Two rechargeable Li-ion smart batteries (optional)

Power supply :AC input: 100 – 240 V; 50/60 Hz; 5.2 – 1.9 A

GENERAL SPECIFICATIONS

Size (H x W x D): 199 mm × 333 mm × 170 mm (7 13/16 in × 13 1/8 in × 6 11/16 in)

Weight: 4.6 kg (10 lb)

Temperature

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: –40 °C to 60 °C (–40 °F to 140 °F)

Datasheet
