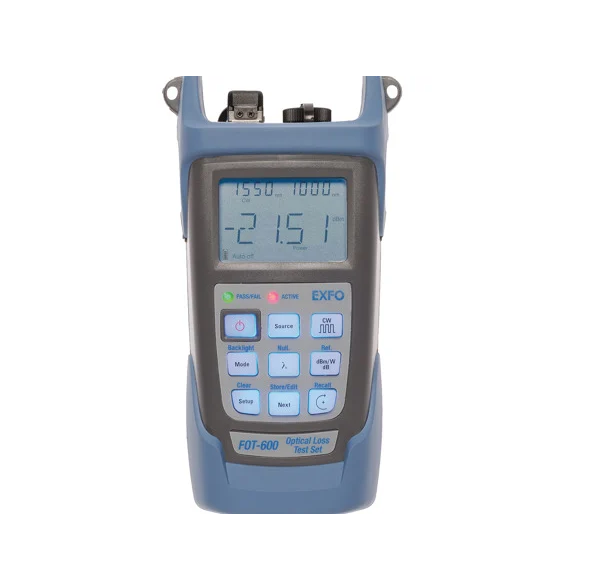

EXFO FOT-600 Optical Loss Test (26 to −55 dBm)

SPECIFICATIONS

Detector: GeX

Power range (dBm) : 26 to −55

Wavelength range (nm): 800 to 1650

Calibrated wavelengths (nm): 800, 820, 830, 840, 850, 860, 870, 880, 910, 980, 1270, 1280, 1290, 1300, 1310, 1320, 1330, 1340, 1350, 1370, 1390, 1410, 1430, 1450, 1460, 1470, 1480, 1490, 1500, 1510, 1520, 1530, 1540, 1550, 1560, 1570, 1580, 1590, 1600, 1610, 1620, 1630, 1640, 1650, 1060

Power uncertainty : ±5 % ± 3 nW

Resolution (dB): ±0.01 (26 dBm to −45 dBm)

Automatic offset nulling : Yes

Display units: dB, dBm, W

Tone detection: 270 Hz, 1 kHz and 2 kHz

Auto-switching : Yes

Warm-up period (min): 0

Data storage (items) More than: 1000

Battery life (hours) (typical:) 72
