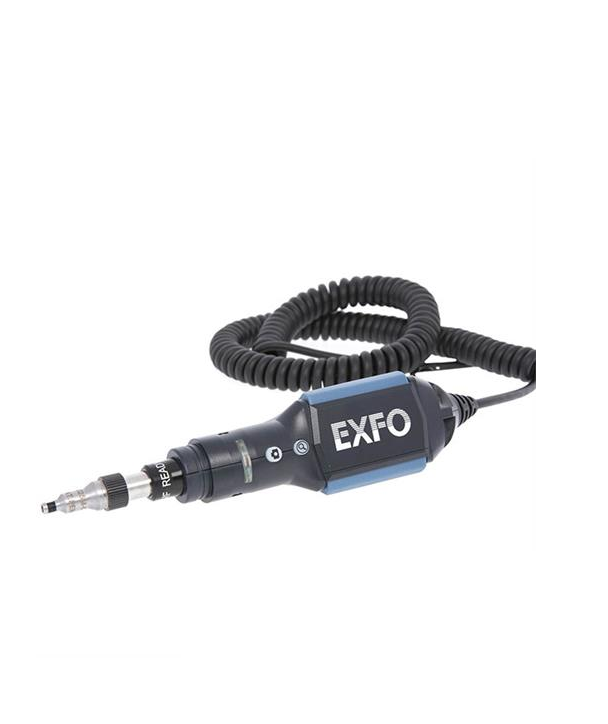

EXFO FIP-430B Fiber Inspection Scope

Size (H x W x D): 47 mm x 42 mm x 162 mm (1 7/8 in x 6 1/8 in x 2 in)

Weight: 0.3 kg (0.66 lb)

Resolution: 0.55 µm

Camera sensor: Five-megapixel CMOS

Visual detection capability: <1 µm

Field of view

304 µm x 304 µm (high magnification)

608 µm x 608 µm (mid magnification)

912 µm x 912 µm (low magnification)

Light source: Blue LED

Lighting technique: Coaxial

Capture button: Available on all models

Magnification button: Available on all models

Digital magnification: Three levels

Connector: Minimum USB 2.0
