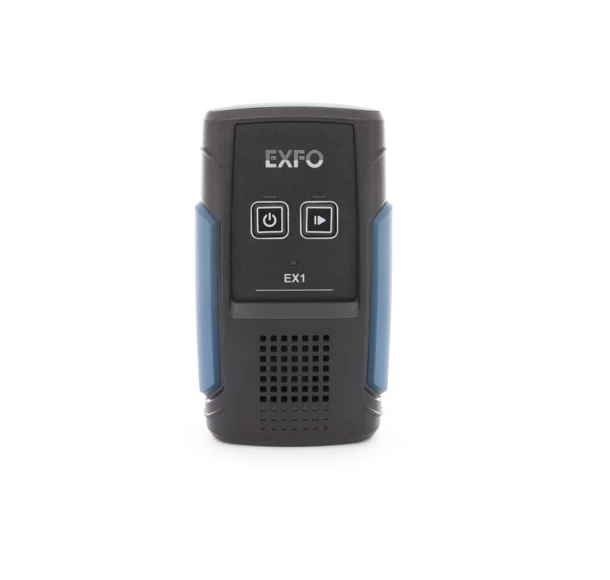

EXFO EX1 Gigabit, GPON and WiFi testing

GENERAL SPECIFICATIONS

Size (H x W x D): 125 mm x 75 mm x 45 mm (5 in x 3 in x 1 ¾ in)

Weight: 0.45 kg (1 lb)

Temperature:

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage with battery (short term < 1 month): –10 °C to 40 °C (14 °F to 104 °F)

Relative humidity range: ≤ 93 %, non-condensing

INTERFACES

Electrical RJ45 test port : 10/100/1000 Mbit/s a

Optical SFP test port: 1 GE SFP, SFP GPON ONT (2.4 Gbit/s download and 1.2 Gbit/s upload) and SFP+ XGS-PON ONT (10 Gbit/s download and 10 Gbit/s upload)

USB port: USB 3.0 type-C port

Bluetooth and WiFi: Bluetooth v4.2 and WiFi 802.11 a/b/g/n/ac

Processor :ARM dual cortex-A53 ARMv8 1.0 GHz

Memory: 1 GB

Storage: 8 GB
