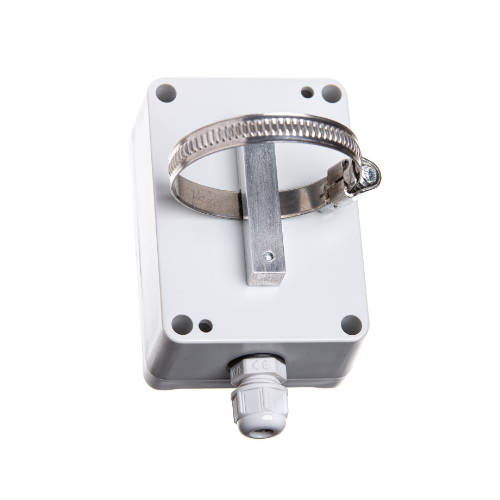

Evikon ET741 Pipe Surface Temperature Sensors (-40~90°C)

Sensing element: Pt100 class A according to EN60751 (as standard)

optional Pt500, Pt1000, PTC1000

Measuring range: -40...+90 °C

Cable connections: screw terminal block

2- or 3-wire sensor connection

Dimensions: S - H88 × W65 × D43 mm

M - H85 × W80 × D55 mm

Enclosure: S - light grey PS, protection class IP55

M - grey ABS, protection class IP66

Operating conditions: -40...+85 °C, 0...100 %RH

Output: plain terminal block

transmitter 4-20 mA / 0-10 V analog

RS485 Modbus RTU protocol digital

Datasheet
