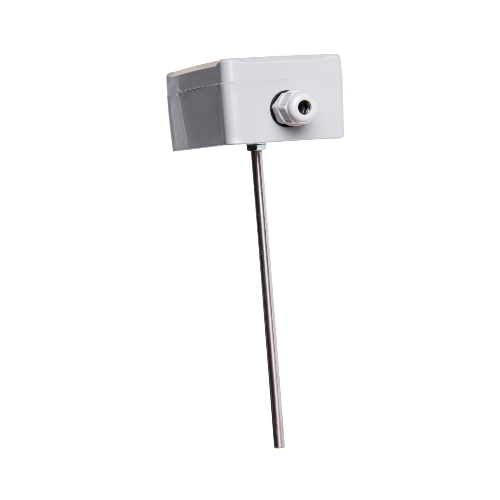

Evikon ET731 Duct Air Temperature Sensors (-40~105°C)

Sensing element: Pt100 class A according to EN60751 (as standard)

optional - Pt500, Pt1000, PTC1000, NTC10A

Measuring range: -40...+85 °C

Cable connections: screw terminal block

2- or 3-wire sensor connection

Dimensions: S - H88 × W64 × D42 mm

M - H82 × W80 × D55 mm

Enclosure: duct mount

S - light grey PS, protection class IP65

M - grey ABS, protection class IP65

Operating conditions: -40...+85 °C, 0...100 %RH

Sensor stem: stainless steel

Ø6, L = 100...500 mm by request (L200 mm as standard)

Output: plain terminal block

4-20mA analog (for enclosure M only)

RS485 Modbus RTU protocol digital (for enclosure M only)
