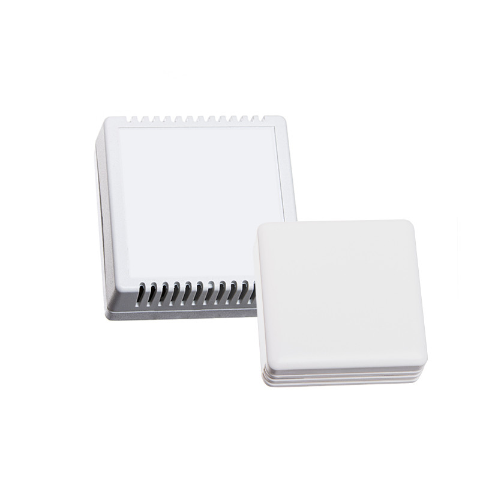

Evikon ET711 Indoor Air Temperature Sensors (-20~50 °C)

Sensing element: Pt100 class A according to EN60751 (as standard)

optional - Pt1000, PTC1000, NTC10

Measuring range: -20...+50 °C

Cable connections: screw terminal block

2- or 3-wire sensor connection

Dimensions: S - H71 × W71 × D27 mm

M - H85 × W85 × D37 mm

Enclosure: white plastic with ventilation slots

wall mount

protection class IP20 (standard)

size S, M

Operating conditions: -20...+50 °C, less than 95 %RH, without condensation

Output: plain terminal block

4-20mA analog (for enclosure M only)

RS485 Modbus RTU protocol digital (for enclosure M only)
