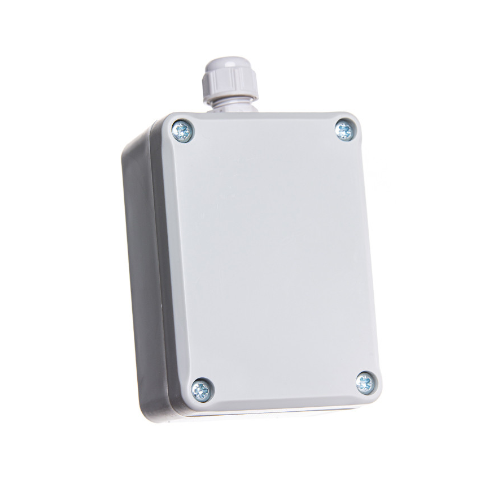

Evikon ET701 Outdoor Air Temperature Sensors (-40~85°C)

Sensing element: Pt100 class A according to EN60751 (as standard)

optional Pt500, Pt1000, PTC1000

Measuring range: -40...+85 °C

Cable connections: screw terminal block

2- or 3-wire sensor connection

Dimensions: S - H88 × W64 × D42 mm

M - H82 × W80 × D55 mm

Enclosure: S - light grey PS, protection class IP65

M - grey ABS, protection class IP65

Operating conditions: -40...+85 °C, 0...100 %RH

Output: plastic screw terminal,

transmitter 4-20 mA analog

RS485 Modbus RTU protocol digital

Datasheet
