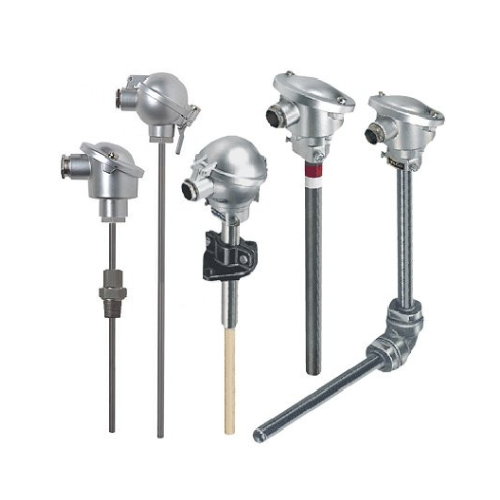

Evikon ET601 Push-in Thermocouples with Terminal Heads (1600°C)

Thermocouple types: K (max 1200 °C) - standard

N (max 1300 °C)

S (max 1600 °C)

Protection tube: Inconel 600 alloy (K)

Pyrosil C (N)

Dimensions: Ø3, L250 / L500 mm Ø6, L250...1500 mm

Terminal head: standard, DIN 43729, aluminium (B)

spherical, hinged cover, DIN 43729, aluminium (N)

aggressive environment, DIN 43729, stainless steel (S)

Output: ceramic terminal block

0-10V / 4-20mA analog

RS485 Modbus RTU interface digital

Mounting accessories: flanges or weldable fittings

threaded compression fittings
