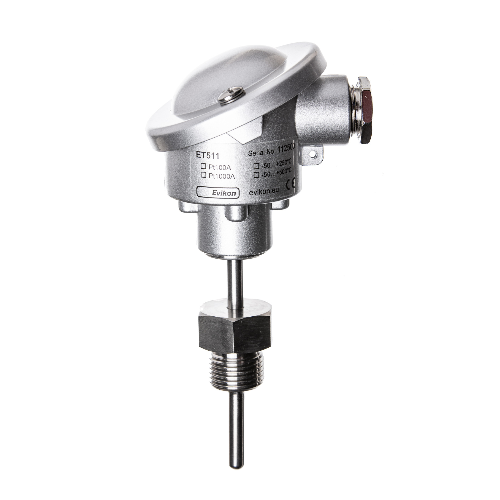

Evikon ET511 Screw-in RTD Sensors with Terminal Head (-50~500°C)

Sensing element: Pt100, Pt1000, class A according to EN 60751

Measurement range: -50...+250 °C or -50...+500 °C

Protection tube: 1.4404 / AISI316L acid poof steel

Dimensions: Ø6 mm, L80...380 mm

Standard lengths: 75 / 100 / 130 / 160 / 200 / 250 / 300 / 350 mm

Protection class: IP55 as standard, up to IP67 on request

Terminal heads: DIN 43729 type B as standard

spherical type N with hinged lid on request

miniature type M on request

Ambient temperature: with screw terminal block -40...+100 °C

with transmitter -40...+75 °C

Output: ceramic terminal block with 2-, 3- or 4-wire RTD connection

Transmitter option: analog output 4...20 mA or 0...10 V

digital RS485 Modbus RTU interface

Mounting accessories: threaded thermowells
