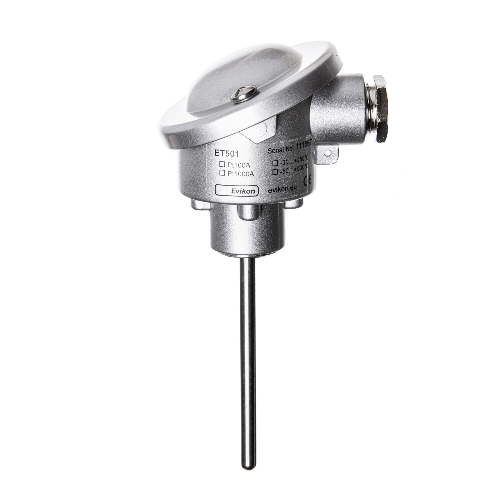

Evikon ET501 Push-in Temperature Sensors with Terminal Head (-50~500°C)

Sensing element: Pt100, Pt1000, class A or B according to EN 60751

Measurement range: -50...+250 °C or -50...+500 °C

Protection tube: A4 / AISI316L stainless steel

Dimensions: Ø6 mm, L80...380 mm

Standard lengths: 80 / 130 / 190 / 230 / 290 / 380 mm

Protection class: IP55 as standard, up to IP67 on request

Terminal heads: DIN 43729 type B as standard

spherical type N with hinged lid on request

miniature type M on request

Ambient temperature: with screw terminal block -40...+100 °C

with transmitter -40...+75 °C

Output: ceramic terminal block with 2 or 3-wire RTD connection

4...20 mA or 0...10 V analog

digital RS485 Modbus RTU interface

Mounting accessories: screw-fix flanges

threaded compression fittings

threaded thermowells
