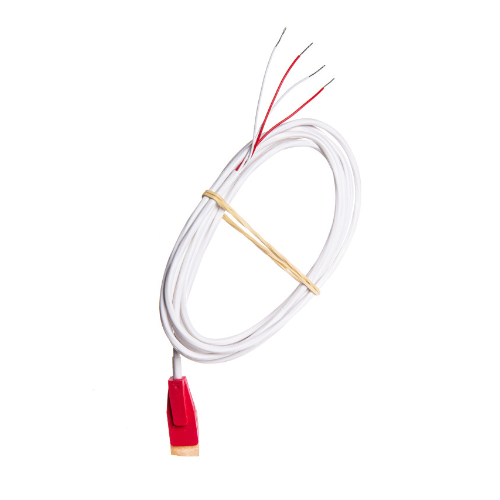

Evikon ET244 Self-adhesive Temperature Sensor (-40~150°C)

Sensing element options: Pt100 or Pt1000 EN60751 class F0.15 or F0.3

Ni1000 or Ni1000 DIN43760 or LG curve

Customer specified NTC thermistor,

curves A, B, C, D, F or as specified

R tolerance @ 25 °C - P ± 1%, Q ± 2%, R ± 5%

β tolerance - X ± 0,2%, Y ± 0,5%, Z ± 1,0%

Sensor protection patch: flexible silicone rubber

dimensions 30×12×4 mm

protection class IP67

bottom attached acrylic adhesive film

Cable options: 3 or 4 wires

PVC (-V), silicone (-S) or fluoroplast (-F) insulation

length N = 1, 2, 5, 10 m
