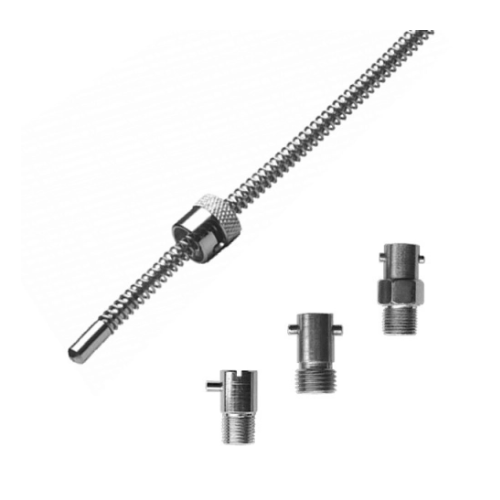

Evikon ET231 Temperature Probes with Bayonet Lock (-105~500°C)

Sensing elements and Thermocouples:

+ K or J type, <105 °C or <500°C

+ RTD: + Pt100 <250 °C or <500°C*

+ Pt1000 <250 °C or <500°C

+ PTC and NTC thermistors on demand

Bayonet tip: AISI316 stainless steel

⌀D 6 mm; L25 mm*

⌀D 6 mm; L4 mm

⌀D 7.8 mm; L20 mm

⌀D 8 mm; L7 mm

Bayonet spring: Straight* or bell-shaped carbon steel spring

Length 200 mm

Outer diameter 6 mm* or 8 mm

Bayonet cap: AISI303 stainless steel

1 slot, inner diameter 11.5 mm*

2 slots, inner diameter 12 or 13 mm

Bayonet adapter: On demand

Cable: FG insulated screened*

Silicone insulated

Fluoroplast insulated screened

PVC insulated for thermistors

PVC KTC

FG TC Screened

Output options: Bare wires

Mini plug for thermocouples
