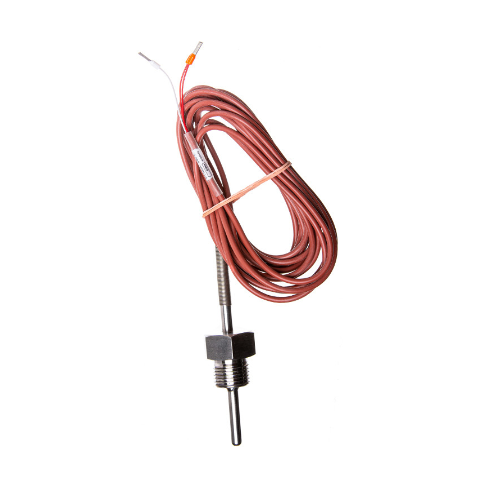

Evikon ET211 Screw-in Temperature Probe with Cable (-50~500°C)

Sensing element: Pt100, Pt1000, PTC1000 or NTC sensor

Measurement range: -50...+250 °C or -50...+500 °C

Protection tube: A4 / AISI316L stainless steel

Dimensions: Ø4 mm or 6 mm, L50 mm

Protection class: IP55 as standard, IP68 on request

Cable: 3 wires (red-red-white), 2 wires (red-white)

Maximum cable temperature (continuous / peak): silicone insulated 180 / 230 °C

fluoroplast insulated 260 / 310 °C

fiberglass insulated 480 / 530 °C

Mounting accessories: Hose clamp or M3 screw

Datasheet
