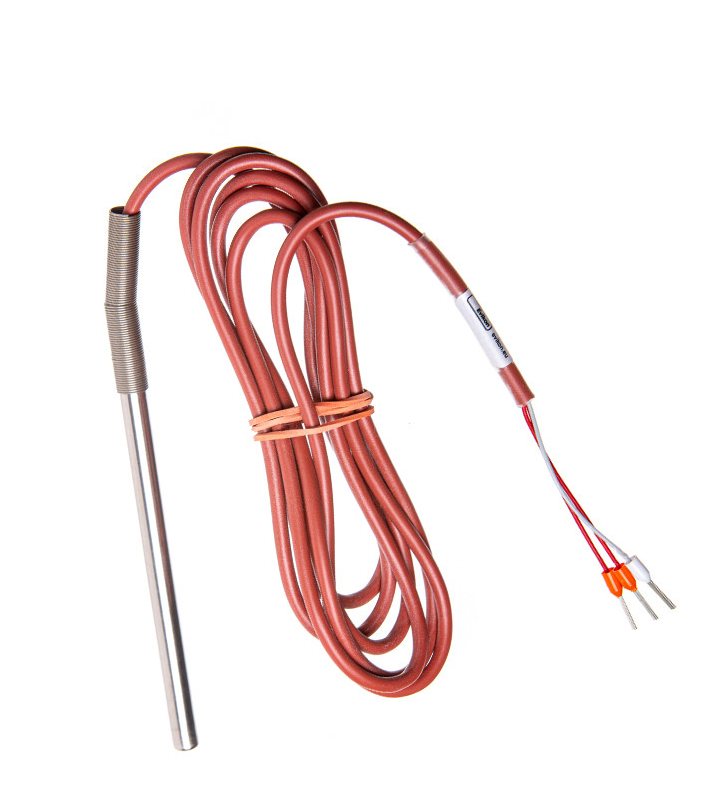

Evikon ET201 Insertion Temperature Probes with Cable (-40~105°C)

Sensing element: Pt100, Pt1000, class A according to EN 60751

Measurement range: -50...+250 °C or -50...+500 °C

Protection tube: A4 / AISI316L stainless steel

Dimensions: Ø3 / 4 / 6 / 8 / 10 mm, L30...1000 mm

Protection class: IP55 as standard, IP68 on request

Cable: 3 wires (red-red-white)

Maximum cable temperature (continuous / peak): silicone insulated 180 / 230 °C

fluoroplast insulated 260 / 310 °C

fiberglass insulated 480 / 530 °C

Mounting accessories: screw-fix flanges

threaded compression fittings

threaded thermowells

Datasheet
