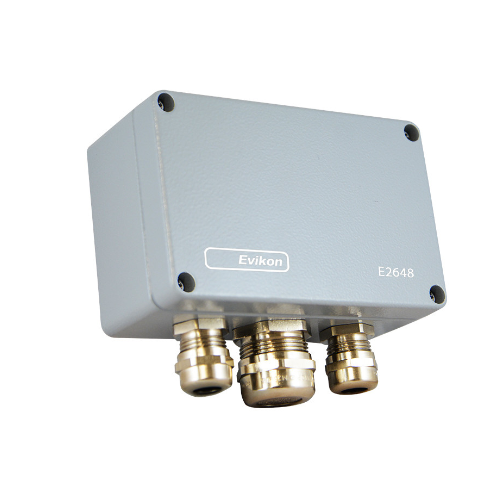

Evikon E2648-NH3-P Ammonia Detector (0~15% vol)

Calibration: ammonia NH3

Sensor type:Pellistor (catalytic bead)

Sampling method:diffusion

Detection range: 0...15% vol. (0…100% LEL)

Resolution:0.1% vol. or 1% LEL

Response time T90: ≤10 s

Accuracy:± 2% LEL

Sensor lifetime: > 3 years

Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs:2 × 4-20 mA / 0-10 V, user settable

Output relays (option): 2 × SPST relays (closing contact), 250 VAC / 30 VDC, 5 A max

Enclosure: die-cast aluminum, wall mount, IP66

Dimensions: H120 × W125 × D57 mm

Operating conditions: -10...+50 °C, 0...95% RH
