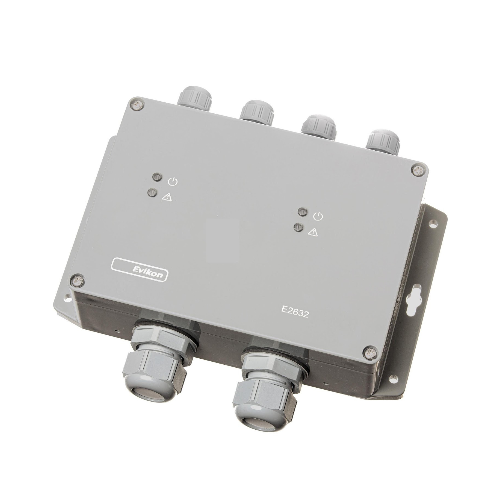

Evikon E2632-CO-CH4 Two Channel Gas Detectors (85 dB)

Sensor type:Depending on detected gases available are

Metal oxide sensors,

Electrochemical sensors

Sampling method: Diffusion

Power supply:24 VDC/AC ±20% (default) or 230 VAC (optional)

Digital interface:UART

Relay outputs:2 relays with switch-over contact per sensor,

2 × SPDT, max 5 A, 30 VDC / 250 VAC

Alarms:Blinking LEDs, buzzers 85 dB

Enclosure: light-grey ABS plastic, wall mount, IP25

Dimensions: H123 × W201 × D55 mm

Operating conditions: 15...95 %RH

Atmospheric pressure ±10%

Non-Atex rated areas

The temperature depends on the sensor.
