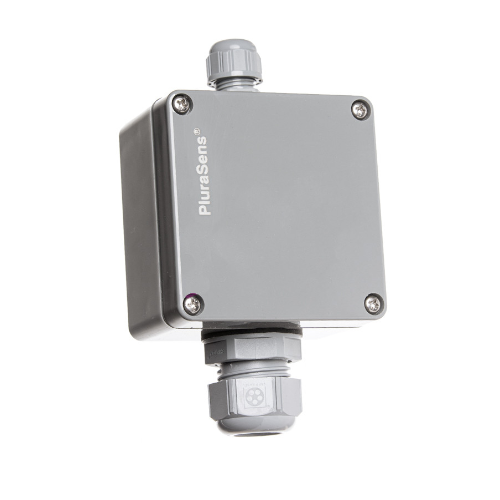

Evikon E2618-PID Solvent Vapors Transmitter (0~200 ppm)

Detected vapors:acetone, ethanol, toluene, xylene etc

Default calibration: isobutylene

Sensor type:Photo Ionization Detector

Sampling method: Diffusion

Detection range: 0...40 ppm isobutylene

0...200 ppm isobutylene

Resolution:0.01 ppm C4H8 for 40 ppm range

1 ppm C4H8 for 200 ppm range

Sensor lifetime: 5 years

Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs:2 × 4-20 mA / 0-10 V, user settable

Enclosure: grey ABS plastic, wall mount, IP65

Dimensions: H82 × W80 × D55 mm

Operating conditions: -40...+65 °C, < 95 %RH
