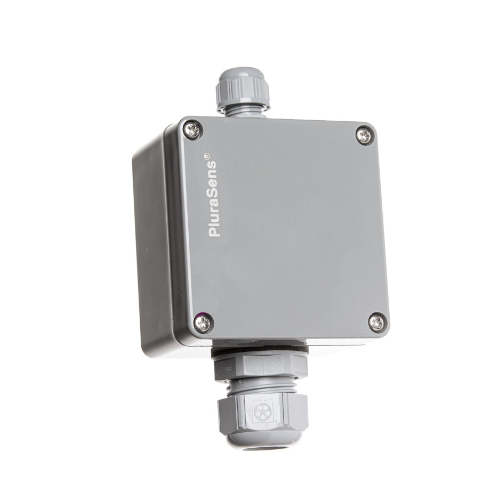

Evikon E2618-NO2 Nitrogen Dioxide Transmitter (0~200 ppm)

Calibration:nitrogen dioxide NO2

Sensor type:electrochemical

Sampling method: Diffusion

Detection range: 0...20 ppm NO2

0...200 ppm NO2

Resolution:0.1 ppm NO2 for 20 ppm range

1 ppm NO2 for 200 ppm range

Sensor lifetime: > 2 years

Power supply: 12...36 VDC (default), 24 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs:2 × 4-20 mA / 0-10 V, user settable

Enclosure: grey ABS plastic, wall mount, IP65

Dimensions: H82 × W80 × D55 mm

Operating conditions: -20...+50 °C, 15...90 %RH
