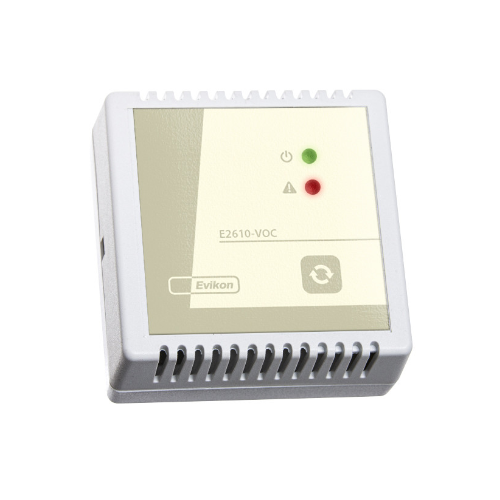

Evikon E2610-VOC Solvent Vapor Detector (0~500 ppm)

Calibration: acetone, ethanol, toluene, xylene etc

Default calibration:toluene

Sensor type: metal-oxide semiconductor

Sampling method: Diffusion

Detection range:0...100% LEL

0...500 ppm

Resolution:0.1% LEL for LEL range

1 ppm for ppm range

Sensor lifetime: > 5 years

Power supply: 24 VDC/AC ±20% (default) or 230 VAC (optional)

Digital interface: UART

Output relays: 2 × SPST relays (switch-over contact), 250 VAC / 30 VDC, 5A max

Alarms:blinking LED, buzzer 85 dB

Default alarm set points:10% LEL / 25% LEL

100 ppm / 300 ppm

Enclosure: light-grey ABS plastic with ventilation slots, IP20

Dimensions: H85 × W85 × D36 mm

Operating conditions: -40...+70 °C, 0...95%RH
