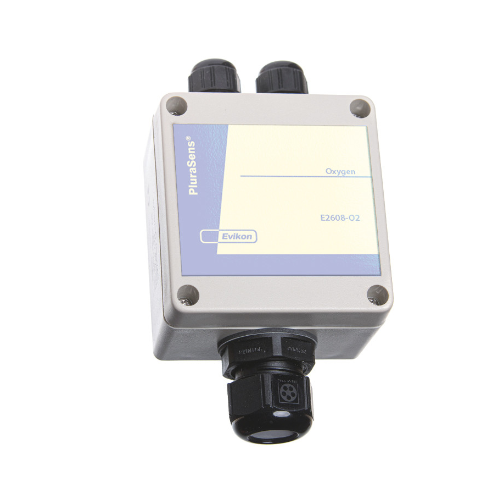

Evikon E2608-O2 Oxygen Detector (0~25 %vol O2)

Calibration: oxygen O2

Sensor type: electrochemical

Sampling method: Diffusion

Detection range: 0...25% vol O2

Resolution: 0.01% vol O2

Sensor lifetime: > 2 years

Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs: 2 × 4-20 mA / 0-10 V, user settable

Output relays: 2 × SPST relays (closing contact)

Default alarm set-points: 19.5 / 18.0 %vol O2

Enclosure: grey ABS plastic, wall mount, IP65

Dimensions: H85 × W82 × D55 mm

Operating conditions: -30...+50 °C, 15...90% RH
