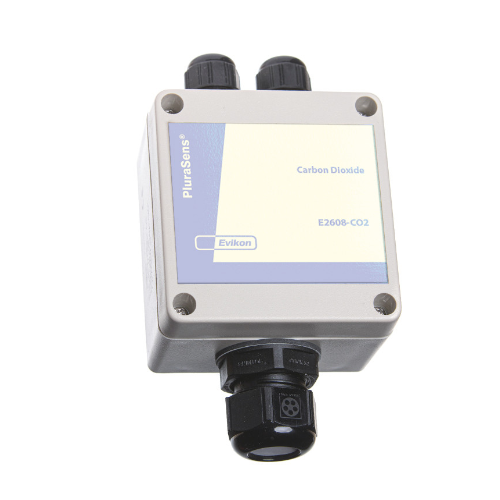

Evikon E2608-CO2 Carbon Dioxide Detector (0~40 000 ppm)

Calibration: carbon dioxide CO2

Sensor type: photoacoustic

optical NDIR

Sampling method: Diffusion

Detection range: 0...10 000 ppm (10K) CO2

0...40 000 ppm (40K) CO2

0...5 %vol (50KN) CO2

up to 100 %vol CO2 on request

Resolution: 1 ppm for 10K

10 ppm for 40K

0.01%vol for 50KN

Sensor lifetime: up to 10 years for 10K/40K

up to 5 years for 50KN

Power supply: 12...36 VDC (default), 24 VAC or 230 VAC as options

Digital interface: RS485, Modbus RTU protocol

Analog outputs: 2 × 4-20 mA / 0-10 V, user settable

Output relays: 2 × SPST relays (closing contact)

Enclosure: grey ABS plastic, wall mount, IP65

Dimensions: H85 × W82 × D55 mm

Operating conditions: -40...+60 °C, 0...100% RH
