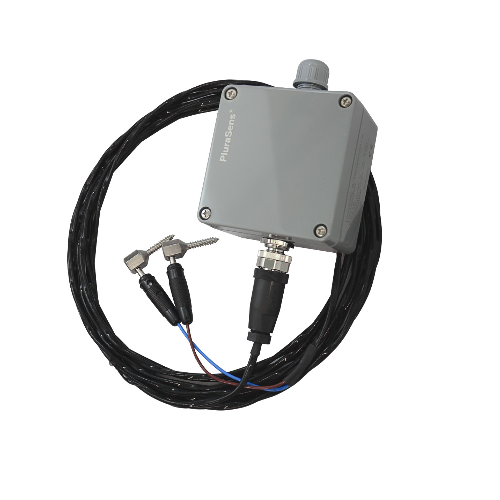

Evikon E2353 Lumber Moisture Transmitter (-40~125°C)

Measurement method: conductivity measurement

Measurement range: 7...20% MC at -40...+125 °C

Resolution: 0.1 % MC

Accuracy: < ±1% MC

Response time: ~15 s

Power supply: 12...36 VDC (default)

24 VAC as option

Power consumption: < 0.5 W

Analog outputs: 2 × 4-20 mA / 0-10 V, user settable

Digital interface: RS485, Modbus RTU protocol

Enclosure: grey ABS plastic, wall mount, protection class IP65

Dimensions: H82 × W80 × D55 mm

Cable connection: industrial M12 connector, IP68

Electrode cable: FEP insulated, -50...+200 °C, thermocompensated, length 5/10/15 m

Screw electrodes: stainless steel, length 15 / 25 mm

Datasheet

Manual
