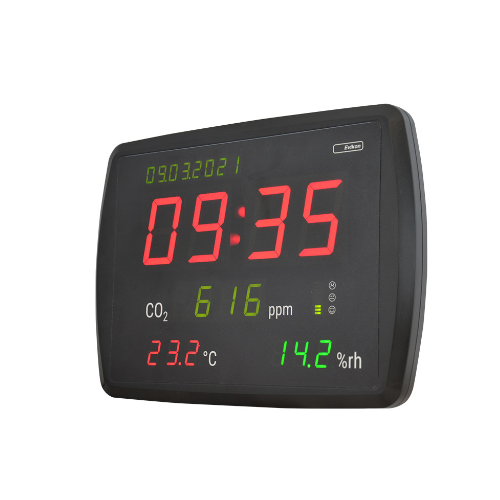

Evikon E2230 Air Quality Wireless Datalogger Panel (-30~60 °C)

Measured parameters: Temperature, Humidity, CO2 level

Additional features: Clock, Calendar

Datalogging: 10 s ... 1 h measurement interval, 16000 datasets memory, wireless data transmission, and time synchronising

Sensors: digital RH and T sensors, optical NDIR CO2 sensor

Measurement range: 0...95 %RH, -30...+60 °C, 400...5 000 ppm CO2

Resolution: 0.1 %RH / 0.1 °C / 1 ppm CO2

Accuracy: ±2.5 %RH / ±0.3 °C / ±50 ppm CO2

Response time: ~15 seconds

Power supply: 12 VDC, 90...265 VAC adapter

Power consumption: < 6 VA

Digital interfaces: USB, RS485

Wireless interface: IEEE 802.11 Wi-Fi 2,4 GHz

Enclosure: black ABS, wall mount, protection class IP40

Dimensions: H232 × W322 × D34 mm

Display: 7-segment LED

Symbol height: Time - 58 mm

Date - 14 mm

CO2 - 25 mm

T, RH - 20 mm

Operating environment: dry indoor spaces

Operating conditions: -30...+60 °C, 0...95 %RH non condensing
