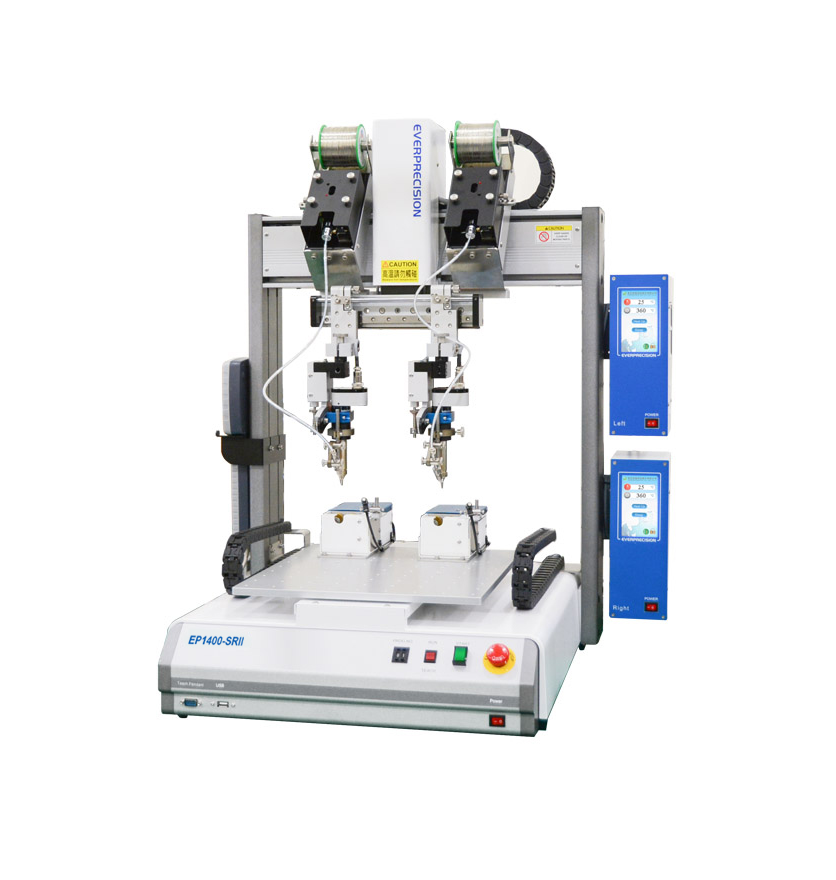

EVERPRECISION EP1400-SRII Premium Twin Heads Soldering Robot

Moving Area (X/Y/Z): 400/400/100 mm

Max. Speed: XY/Z：400 / 320 mm/sec

Soldering Head Distance: MIN. Distance 90mm / MAX. Distance 165mm

Program System: CF Card / USB

Drive System/ Stepping Motor: Micro Stepping Motor

Max.Temperature: Max. 460°C

Solder Wire Diameters: ø 0.4 ~ 1.2 mm

Clean System: Air / Brush

Power Supply: 100V~230V/450W

Working Humidity: 20-85% no condensation

Weight: 75 kg

Working Area(X/Y): 400 /300 mm

Repeatability: +/- 0.01 mm/ Axis

Data Memory capacity: 9999 points/prog. 100 programs

Display: Teach Pendant LCD

Teaching Method: Teach Pendant

Temp.Control Power: 150 W (Optional:200W ; 280W )

Solder Feeder System: Stepping Motor

Air Pressure: 5~7 kg/cm²

Working Temp.: 10-40°C

Dimensions WxDxH: 791x730x860.5mm(Include exhaust pipe)
