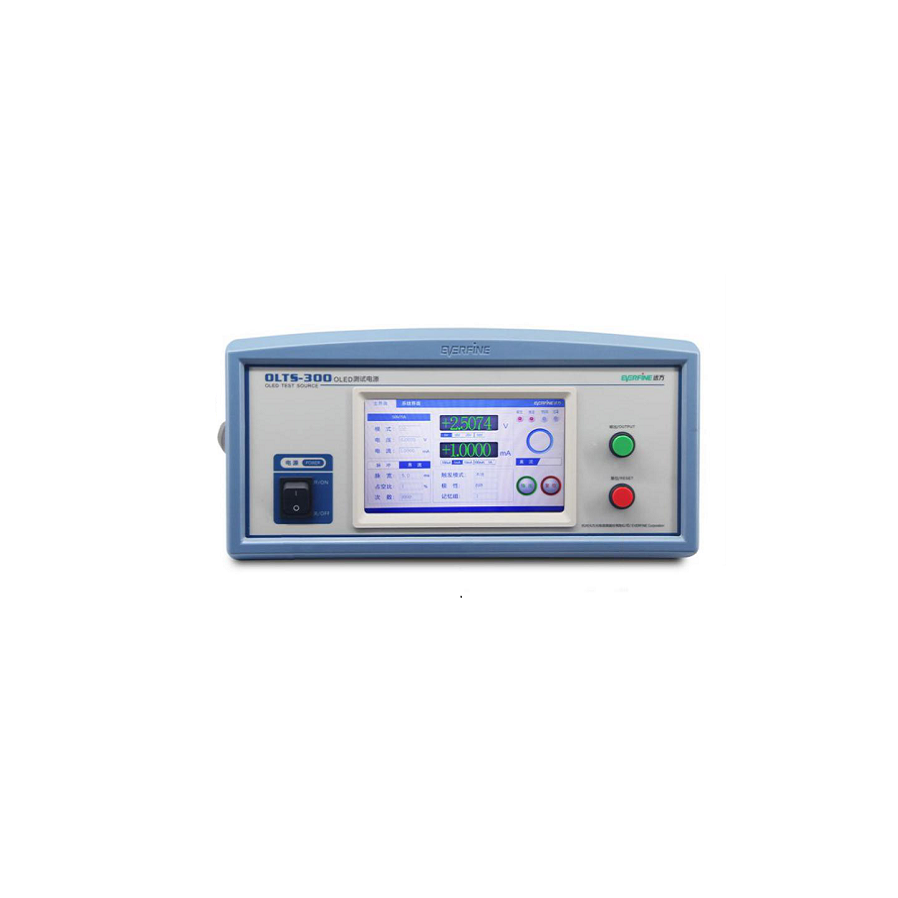

EVERFINE OLTS-300 OLED Test Source

Maximum output

DC:50V@1A

PULSE:50V@1A

Output Range

Current (source ):1A、100mA、10mA、1mA、100μA

Current (Meter ):1A、100mA、10mA、1mA、100μA

Voltage(source ):50V

Voltage(Meter ):50V、25V、10V、5V

Current output accuracy

DC:±(0.2%Setting + 0.1%Range)

PULSE:±(0.4%Setting + 0.2%Range)

Current measurement accuracy

DC:±(0.1%Reading + 0.1%Range)

PULSE:±(0.2%Reading + 0.2%Range)

Voltage output accuracy

DC:±(0.2%Setting + 0.1%Range)

PULSE:±(0.4%Setting + 0.2%Range)

Voltage measurement accuracy

DC:±(0.1%Reading + 0.1%Range)

PULSE:±(0.2%Reading + 0.2%Range)

Current /Voltage rising time: Typical time＜ 500μs

Communication interface: RS-232/USB/LAN
