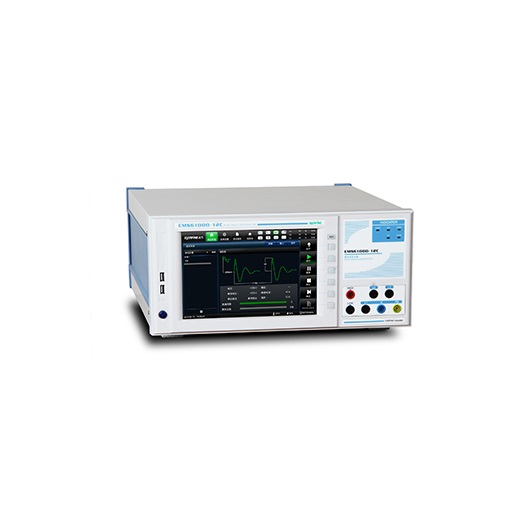

EVERFINE EMS61000-12C Ring Wave Generator

Peak open circuit voltage: 0.25~7.0kV±10%

Open circuit voltage wave: The front 0.5us±20%, Short circuit voltage wave≤1us

Oscillation frequency: 100kHz±10%

Output impedance: 12Ω, 30Ω, 200Ω

Polarity: Positive /Neg./Alternation

Trigger phase:

Asynchronous / phase synchronization / external synchronization, 1° step

Specific phase switching (0°~90°~180°~270°)

Voltage attenuation: 0.4<0.8<="" ，0.4

Built-in single/three-phase decoupling network: Three phase five wire system, line voltage 450VAC/20A, DC 220VDC/20A

Communication: RJ45, USB
