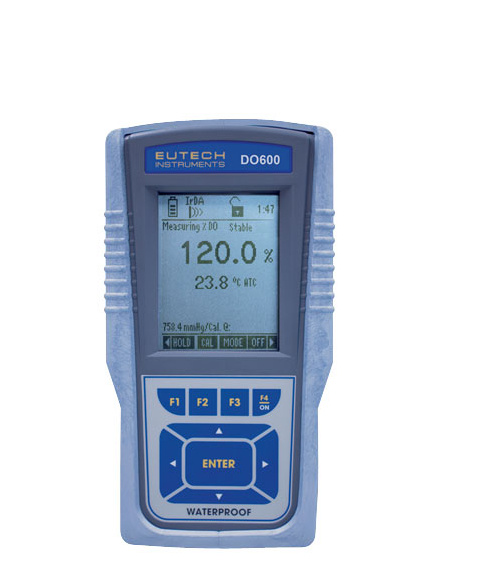

Eutech ECDOWP60041K Waterproof Dissolved Oxygen Meter (0.00 ~ 90.00 mg/L)

- Dissolved Oxygen

Range: 0.00 to 90.00 mg/L or ppm

Resolution: 0.01 mg/L or ppm

Accuracy: ±0.2 mg/L

- % Saturation

Range: 0.0 to 600.0%

Resolution: 0.1%

Accuracy: ±2 %

- Temperature

Range: 0.0 to 50.0 °C (32 to 122 °F)

Resolution: 0.1 °C (0.1 °F)

Accuracy: ±0.3 °C (±0.5 °F)

Compensation: ATC / MTC (0.0 to 50 °C)

- Salinity Correction

Range: 0.0 to 50.0 ppt

Resolution: 0.1 ppt

Method: Automatic correction after manual input

- Pressure Correction

Range: 450 to 825mmHg (59.9 to 109.9 kPa)

Resolution: 1 mmHg (0.1 kPa)

Method: Automatic correction with inbuilt sensor

Calibration: 2 Point (0%, 100%)

Operating Range: 0.0 to 50.0 °C (32 to 122 °F)

Probe Type: Galvanic

Date/Time Stamping: Yes

Memory: 500 data sets (GLP-compliant format)

Special Functions: Auto-Hold; Auto Power-Off after 2 - 30 minutes (user-preset); Stability Indicator; Self-diagnostics messages

Power: 4 x 1.5 'AA' batteries (>400 hours) or 9V DC adapter, 500 mA

Supply: Waterproof CyberScan DO 600 Dissolved Oxygen Meter with 10 ft cable electrode ECDOHANDYNEW, DAS software, power adapter & carrying kit set
