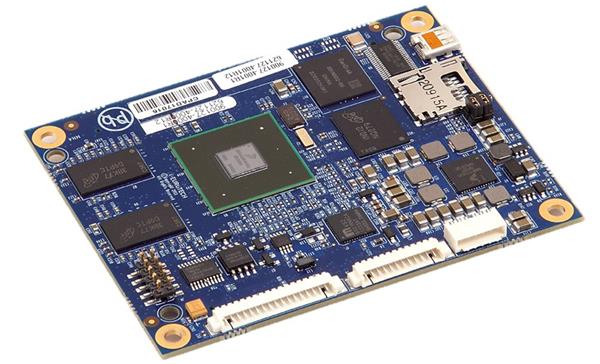

Eurotech CPU-301-16-03 Single Board Computers i.MX6 Quad Core 800MHz 1GB DDR3

Core: ARM Cortex A9

Flash: 64 GB

Frequency: 800 MHz

Dimensions: 85 mm x 67 mm

Memory Type: DDR3L

Installed RAM: 0 GB

Interface Type: Audio, CAN, Ethernet, I2C, PCIe, SATA, Serial, SPI

Processor Type: i.MX 6

Processor Brand: Freescale

Power Consumption: 5 W

Description/Function: Embedded platform of choice for a wide range of applications, such as retail kiosk displays, medical equipment, and control panels for ?tness equipment

Maximum RAM Capacity: 1 GB

On-Board Storage Size: 4 GB

On-Board Storage Type: eMMC

Battery Backup Switching: No Backup Battery

Operating Supply Voltage: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
