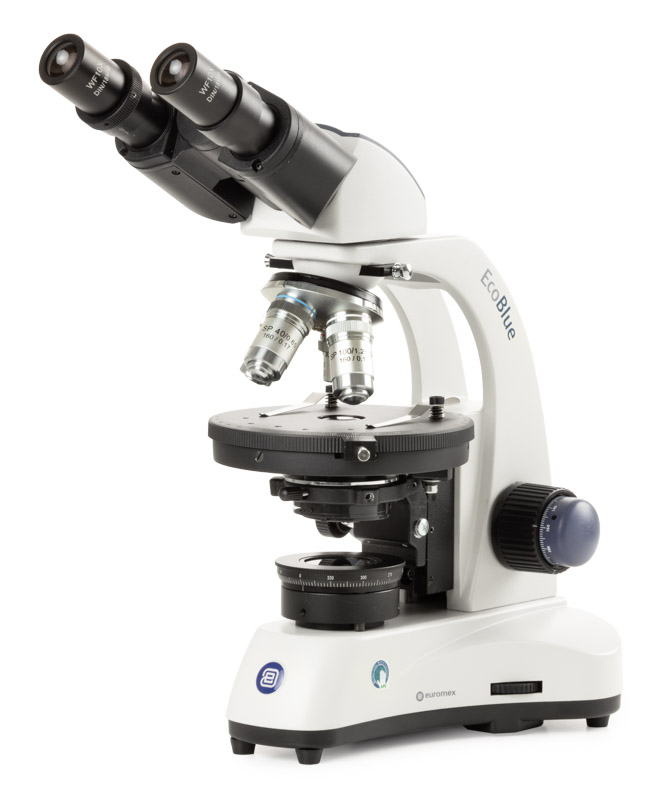

Euromex EC.1102-P-HLED-S EcoBlue binocular microscope for polarization (10x/18 mm, 4x, 10x, S40x, S100x)

Secured DIN WF 10x/18 mm eyepiece

Binocular head, 30° inclined, 360° rotatable

Swing-in analyzer

Forwarded quadruple revolving nosepiece on ball-bearings

achromatic semi-plan 4x, 10x, S40x, S100x oil immersion objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment

Round 129 mm stage and 2 object clamps, 360°rotatable

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

1 W H-LED illumination, light spectrum similar to the halogen light spectrum

With 360° rotatable polarizer. Internal power supply 100-240 V

Paint with Antibacterial Protection Layer

Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case

Datasheet
