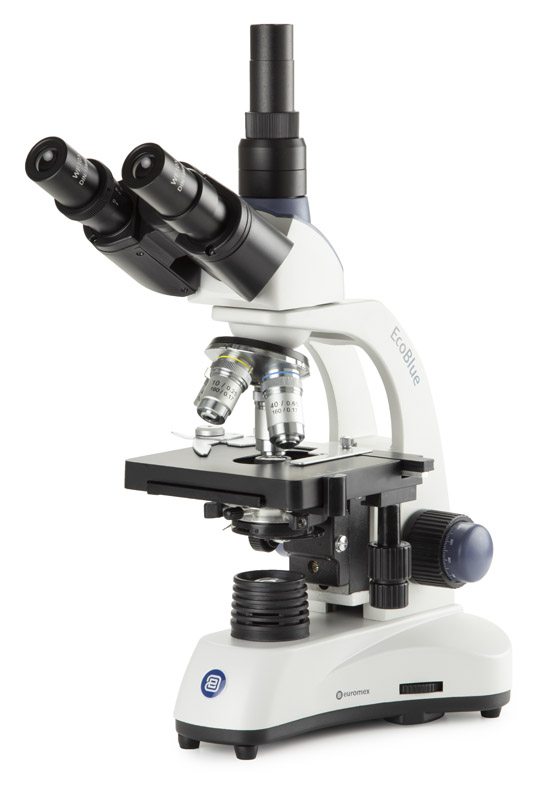

Euromex EC.1053 EcoBlue Trinocular microscope (10x/18 mm, 4x, 10x, S40x)

Secured DIN WF 10x/18 mm eyepiece

Trinocular head 30° inclined, 360° rotatable

Forwarded quadruple revolving nosepiece on ball-bearings

Achromatic 4x, 10x, S40x objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment

Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

1 W LED illumination with built-in 3 rechargeable batteries

External power supply 100-240 V (CE)

Paint with Antibacterial Protection Layer

Supplied with power cord and dust cover in styrofoam case

Datasheet
