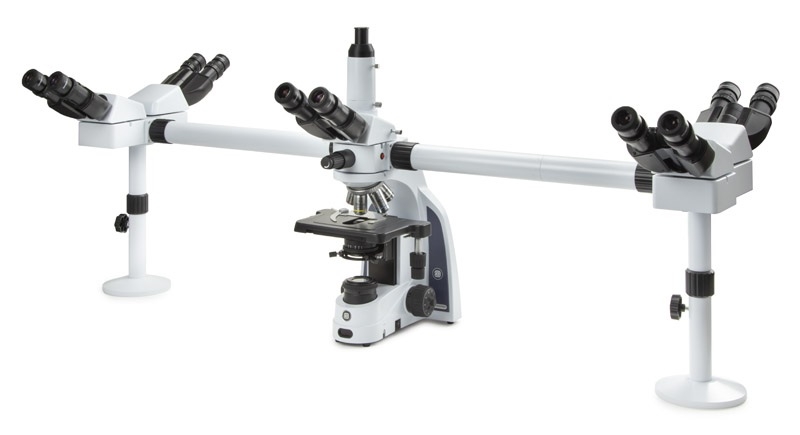

Euromex DX.2156-PLPHi/5 Delphi-X Observer Multihead system for 10 observers (SWF 10x/25 mm, 10/20/S40/S100x)

Side-by-side multihead system for 5 observers

One trinocular head and four binocular head with 30°inclined Ø 30 mm tubes and SWF 10x/25 mm eyepieces

Interpupillary distance 47-78 mm with diopter adjustment on both eyepieces

Revolving sextuple reversed nosepiece on ball bearings

Plan Phase contrast PLPHi 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil immersion IOS objectives, EIS 60 mm parfocal objectives. M25 thread

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

190 mm x 152 mm stage equipped with integrated 78 x 32 mm mechanical stage and scratch-resistant Gorilla™ glass

Height adjustable and rotating Zernike phase contrast 1.25 condenser with numerical aperture engravings

Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per rotation. Total travel approximately 35 mm

Rack-stop for protection of slides and objectives. Friction adjustment

Diascopic intensity adjustable 100 W halogen illumination with Internal 100-240 V power supply (CE)

iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energy

Carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder

Supplied with power cord, 5A 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box
