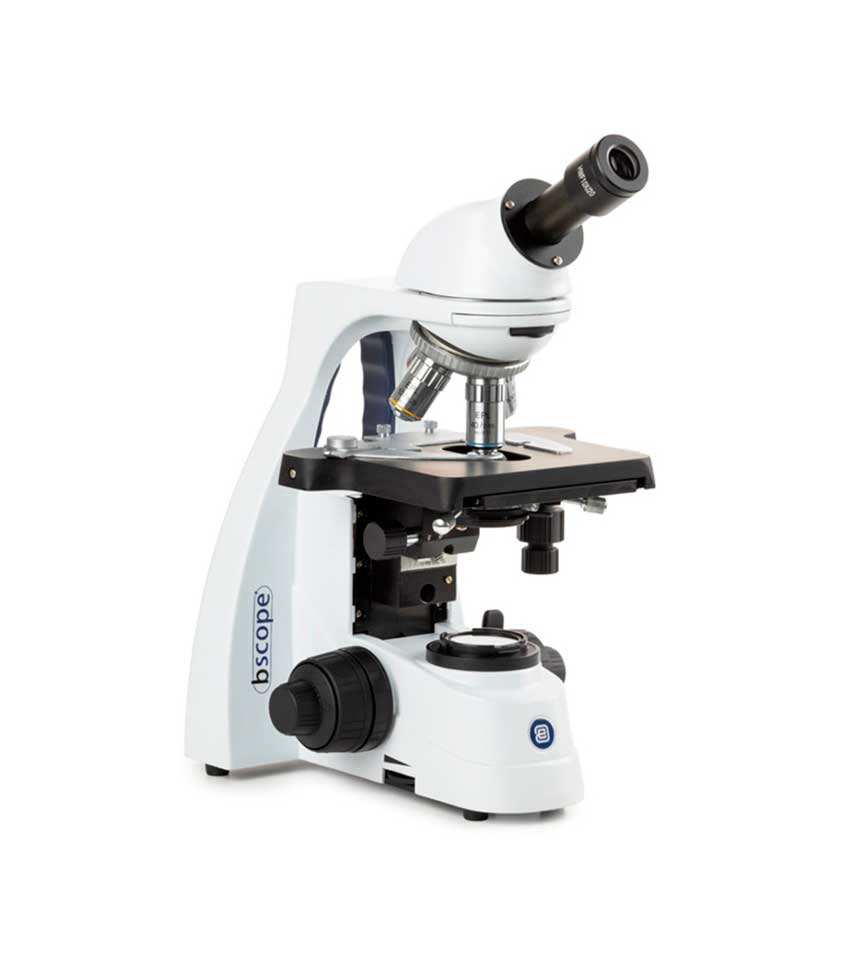

Euromex BS.1151-EPL bScope monocular microscope (10x/20 mm, E-plan EPL: 4x, 10x, S40x, S100x)

HWF 10x/20 mm eyepiece

Monocular head, 30° inclined tube

Reversed quadruple revolving nosepiece on ball-bearings

E-plan EPL 4x, 10x, S40x, S100x oil immersion objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2 mm per rotation. Total travel approximately 19 mm. Friction adjustment

Plain 131 x 152/197 mm rackless stage with 75 x 36 mm mm mechanical rackless stage

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder 3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)

Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and without rechargeable AA-type batteries
