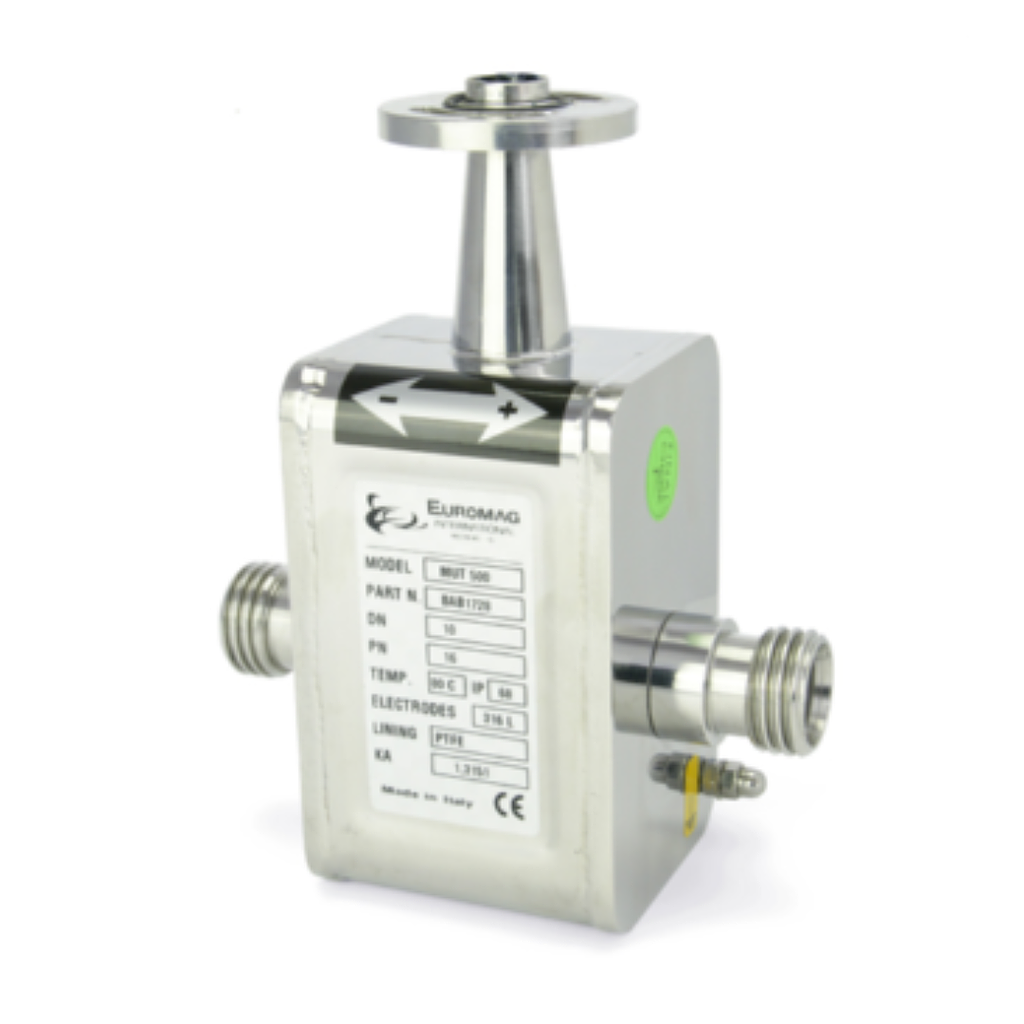

Euromag SENSOR MUT500 The electromagnetic flowmeter for small flows
ManufacturerEuromag(View more products from this manufacturer)
ModelSENSOR MUT500
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technical Specifications
Available diameters: 3mm 6mm 10mm 15mm 20mm
Connections: Male trheaded joint UNI 338 / NPT-M / Triclamp / DIN 11851
Nominal pressure: 16 bar
Liquid temperature (constant): -20°C a +160°C (For the compact version Tmax = 80°C)
Degree of protection: IP68 continuous inmersion at 1,5 m
Compatibility of converters: MC 106 A MC 106 B MC 308 MC 608 A MC 608 B
Parts in contact with the liquid: Flow tube: PTFE Gasket: Viton ( Others on request)
Weight (Maximum weight of sensor without cables): 1,9 kg
