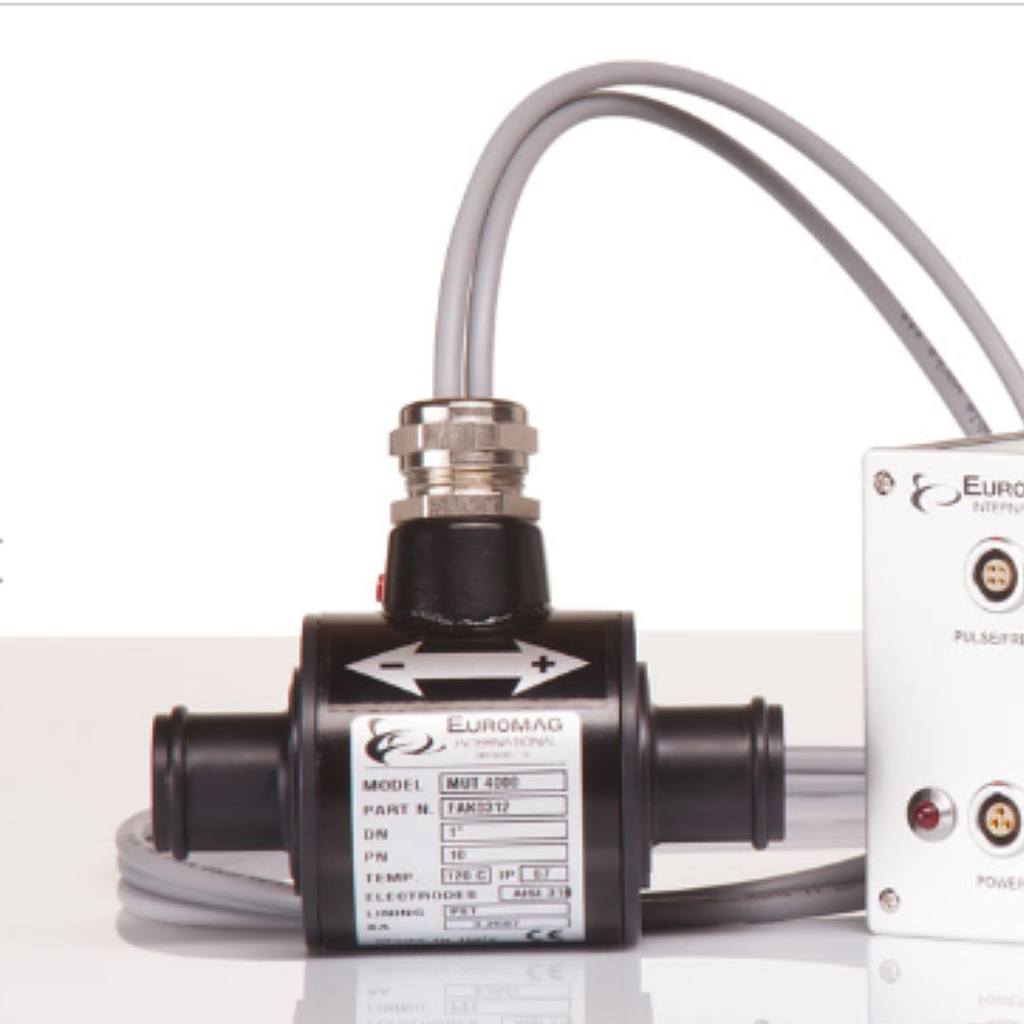

Euromag SENSOR MUT4000 Electromagnetic flowmeter

Technical Specifications

Temperature Rating:-25°C to +120°C

Viscosity Range:Viscosity independent.

Accuracy and repeatability:0,2% ± 2mm/s

Fluid Conductivity:Must be greater than 5 µS/cm.

Flow tube:PET

Electrodes:3 el. in AISI 316

Closure:Carbon steel with cataphoresys treatment

Protection Rating:IP67 NEMA 6

Connections:Hose fittings

Connectors:Lemo – specific for automotive use

Pressure class:PN10

Suitable converters:MC608P – MC608LB

Cable length:

Cable CF240PUR 5mt (16.4 ft)

Cable CF240PUR 6,1mt (20 ft)

Cable CF240PUR 12,2mt (40 ft)

Options:Stainless Steel 304 body for extremely rough conditions

Operating and Maintenance Manual:Included

Calibration Certificate:Included

Software PC:Included

Applications: Automotive
