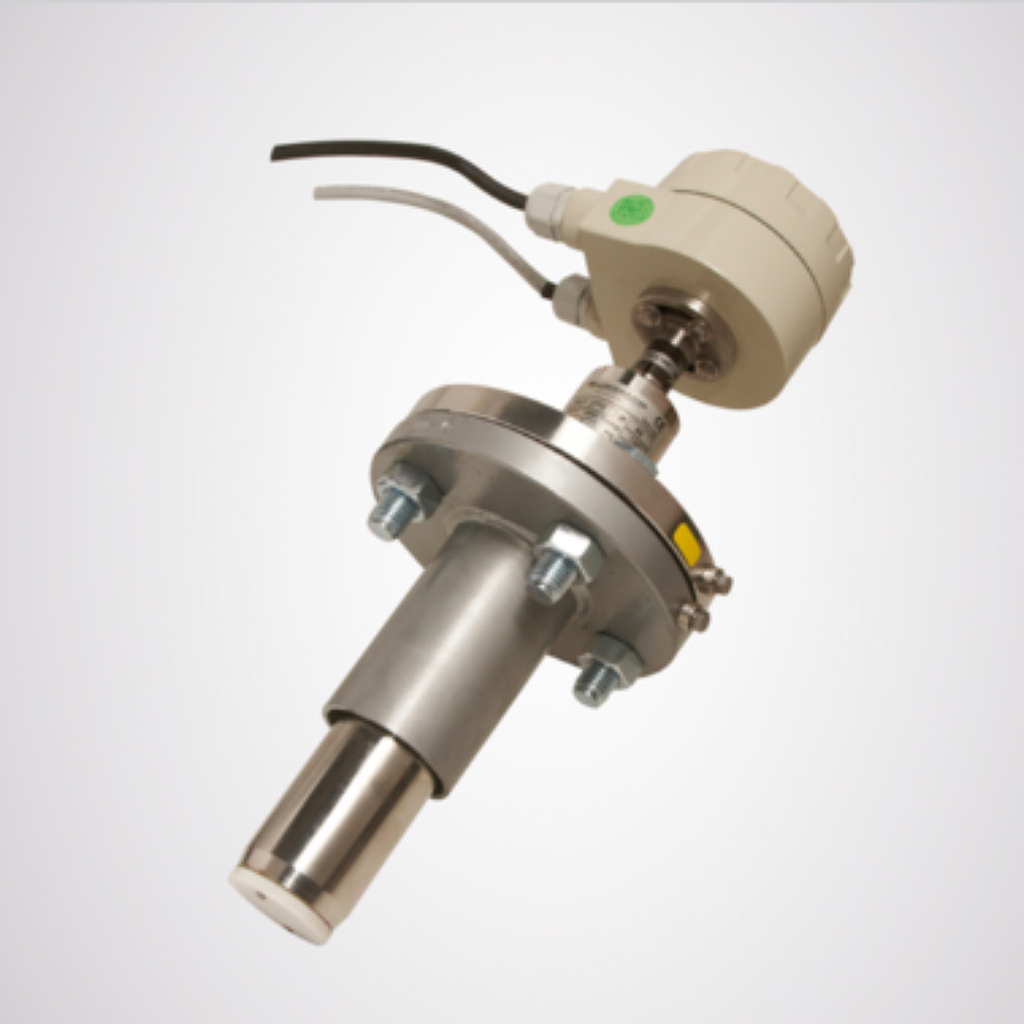

Euromag SENSOR MUT2770 The electromagnetic insertion flowmeter

Technical Specifications

Size range:

Minimum pipe diameter: 80 mm

Maximum pipe diameter: 2000 mm

Available electrodes [*]: AISI 316L

Body material: AISI 304 Stainless Steel

Head of sensor: PTFE

Standard operating pressure: 16 bar

Temperature of liquid: -40 °C ¸ +80 °C

Protection Degree: IP68 for immersion at 1,5m (IEC 529)

Converter compatibility: MC 106, MC 108, MC 308, MC 308 C, MC 608

Parts in contact with liquid:

Head of sensor: PTFE

Pipe end: AISI 304

Electric connections: Cable gland PG 11 + Terminal block + sealing resin

Applications:

• Water network management

• Leakage control

• District metering

• Flow surveys

• Flow profiling

• Checking on-site flowmeters

• Data capture reporting and analysis
