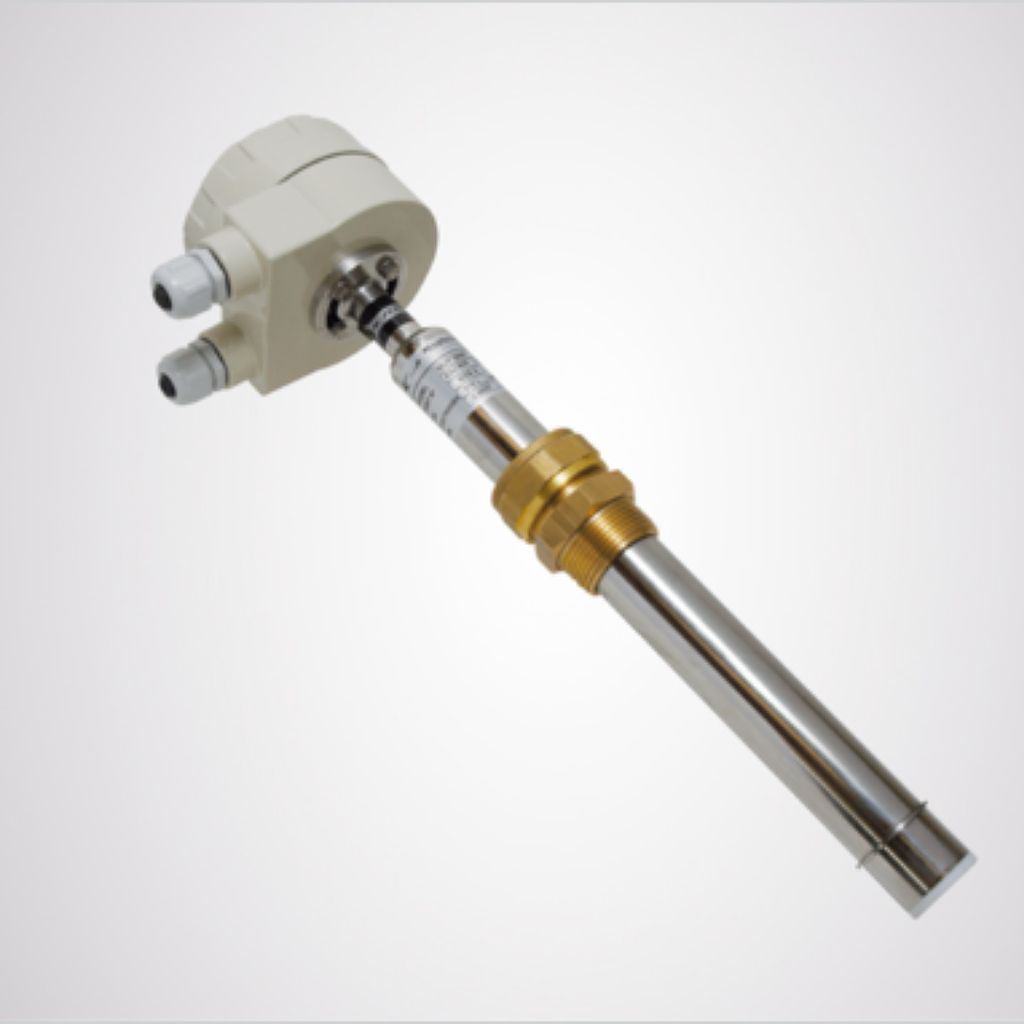

Euromag SENSOR MUT2660 The electromagnetic insertion flowmeter

Technical Specifications

Size range:

Minimum pipe diameter: 80 mm

Maximum pipe diameter: 500 mm

Available electrodes [*]: AISI 316L

Body material: AISI 304 Stainless Steel

Head of sensor: PTFE

Standard operating pressure: 10 bar

Temperature of liquid: -40 °C ¸ +80 °C

Protection Degree: IP68 for immersion in 1,5m (IEC 529) (separate version)

Converter compatibility: MC 106, MC 108, MC 308, MC 308 C, MC 608

Total length [mm]: 317

Parts in contact with liquid:

Head of sensor: PTFE

Pipe end: AISI 304 Stainless Stee

Weight: 2kg

Electric connections: Cable gland PG 11 + Terminal block + sealing resin

Applications

• Water network management

• Leakage control

• District metering

• Flow surveys

• Flow profiling

• Checking on-site flowmeters

• Data capture reporting and analysis
