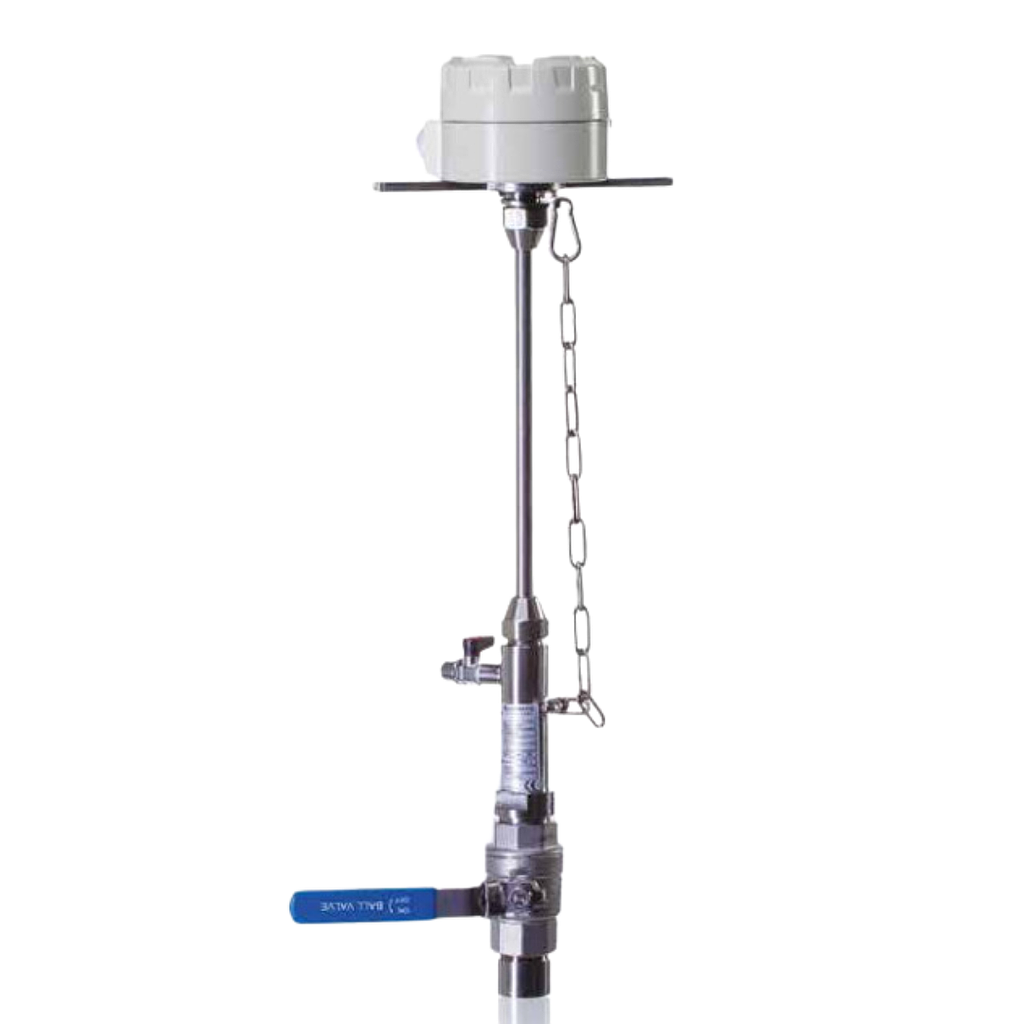

Euromag SENSOR MUT1222 The electromagnetic insertion flowmeter

Technical Specifications

Size range:

Size Small (S) : 50…600

Size Medium (M) : 200…1500

Size Large (L): 450…2600

Available electrodes [*]: AISI 316L

Body material: AISI 304 Stainless Steel

Head of sensor: POM

Standard operating pressure: 20 bar

Temperature of liquid: -40 °C ¸ +80 °C

Protection Degree: IP68 for immersion at 1,5m (IEC 529)

Converter compatibility: MC608, MC406

Parts in contact with liquid:

Head of sensor: POM

Electrodes: AISI 316L

Pipe end: AISI 304

Electric connections: Cable gland M20 x 1.5 + Terminal block + sealing resin

Applications:

• Water network management

• Leakage control

• District metering

• Flow surveys

• Flow profiling

• Checking on-site flowmeters

• Data capture reporting and analysis
