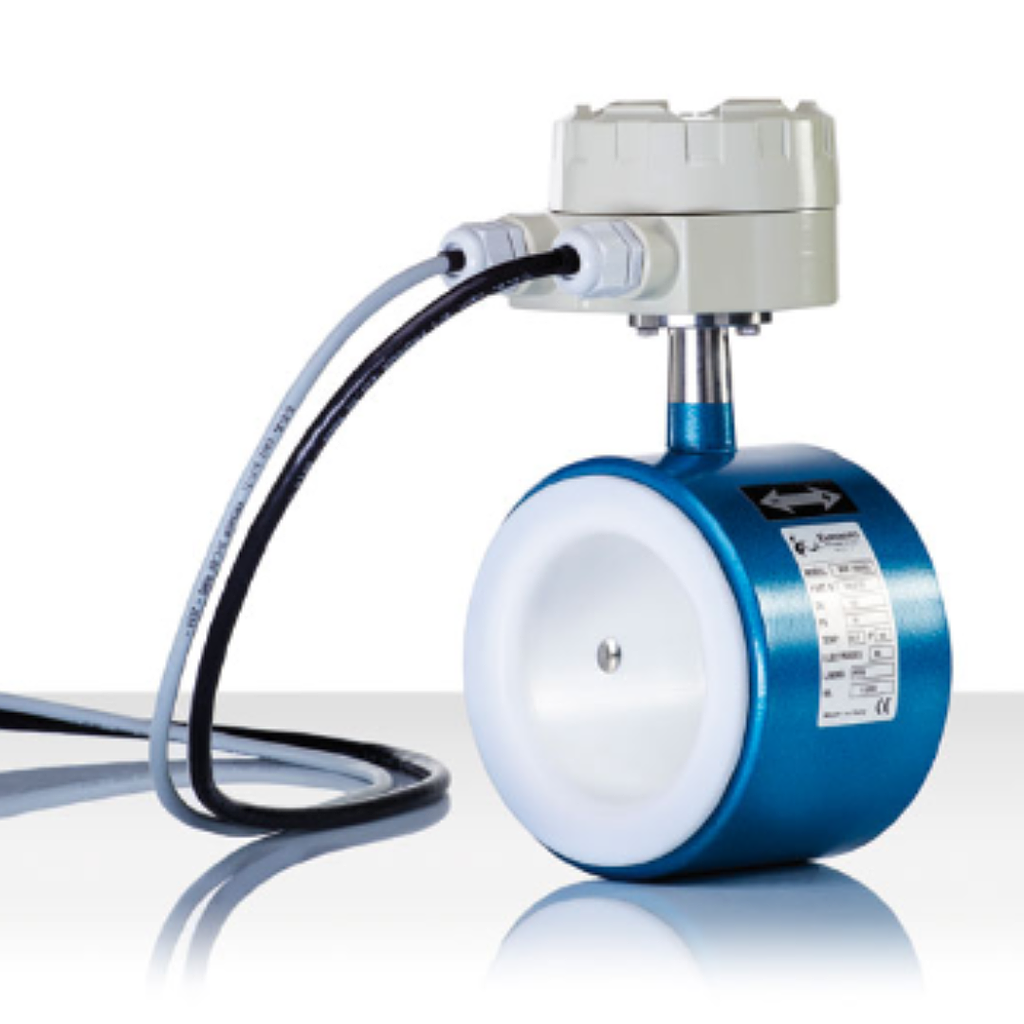

Euromag SENSOR MUT1000EL The wafer electromagnetic flowmeter

Technical Specifications:

Available diameters[mm]: 25, 40, 50, 65, 80, 100, 125, 150, 200. 250, 300

Joints: coupling flanges : EN1092-1, ANSI 150, ANSI 300, ANSI 600, ANSI 900, DIN 2501, BS 4504, AS 2129 (TABLE D - E - F), AS 4087, ISO 7005-1, KS 10K

Maximum pressure: 40 bar for diameters < DN150 / 16 bar for diameters > DN200

Internal lining and liquid temperature (Compact version Tmax 80°C.)

• Internal lining: PTFE / liquid temperature: Standard -40 /+130°C (up to +180° on request)

• Internal lining: Ebonite / liquid temperature:-40°C / +80°C

Degree of protection: IP68 continuous immersion at a 1,5 m (EN 60529)

Compatible converters: MC608 A/B/R/P/I, MC406

Electric connections: Cable glands M20 x 1.5 + terminal block + sealing resin

Applications

• Water treatment

• Waste water industry

• Mining

• Industry
