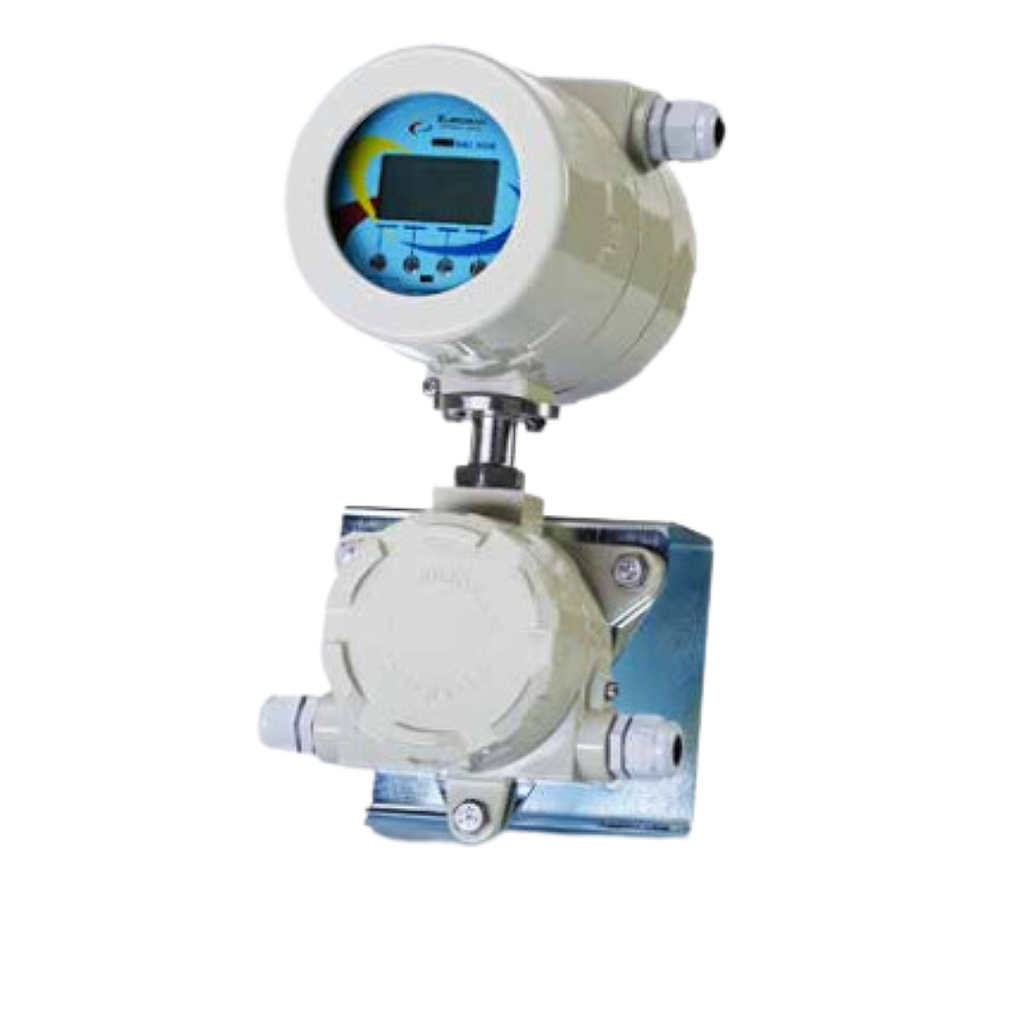

Euromag MC608A Converter MC608

Technical Specifications

Case: Aluminium IP68

Power supply:

90...264 Vac

12/24 Vac/dc

Installation:

Compact: Yes

Separate:max 100m

Signals I/O

Analogue output 4-20mA: Yes

Pulse output: Yes

Hart protocol*: Yes

Programmable digital output: Yes

Active frequency digital output 0-10 kHz: Yes

Serial Communication

IrCOM interface: Yes

RS 485 - MODBUS RTU: Yes

Display:Graphic LCD display 128x64 pixels, 50x25mm visual area, backlit white colour

Programming:With push buttons on board of converter, by IrCOM interface or via RS485 and MODBUS RTU

Process Data logger: 4 MB flash memory, 200,000 lines of data

Standards: Type approved OIML R49-1: 2013 - Class 2

Overall:

Temperature

Ambient: -20 ... +60 C° (-4 ... +140 F)

Media -25 ... 80 C° (-13 ... +176 F)

Storage -40 ... +70 C° (-22 ... +158 F)

Flow units: ml, cl, dl, l, dal, hl, m3 , in3, ft3, gal, USgal, bbl, oz + Custom value

Add on modules :GSM/GPRS Euromag Module Pressure (1) and temperature (2)

Totalizers: 5 (2 positive, 2 negative, 1 NET)

Alarms and status: Status icon displayed and alarm logged in the datalogger

Self-diagnostic: Alarms available:

• excitation failure

• empty pipe on the 4th electrode

• high temperature

• pulse overlapped

• measurement error
