ETV Cameras 4488FHPT-33 Pipe Inspection Camera (Φ33mm; cable 40m)

33mm Pan Tilt rotation camera head

Camera size：33 x 72mm (50mm x 154mm)

Camera pixel Sensor：1/3" CMOS, 2.0MP pixel

Waterproof level：Waterproof IP68

Camera range：View range 120°

Focusing：Manual focus manually

Rotation range：Rotation: Pan 360°， Tilt 180°

Light：4pcs high light LED lighting adjustable

Connector：Detachable with pins type connection to Cable Reel

Material ：Lens window sapphire glass & stainless steel

DVR control unit

Screen Size：13"HD IPS LCD Screen, waterproof panel 1280X720 resolution

Waterproof level：Waterproof keys for DVR function

Function：1080P format video, auido and photography function DVR

Keyboard：USB wireless Keyboard real time typewriting

Input：Video input port (Compatiable different camera head)

Meter counter：Digital meter counter function, display on the screen

Battery：8800mA rechargeable Li-ion Battery Pack

Battery level indicator

The box has 9 languages.(English,Chinese,French, Espanol

German,Polish,Korea,Russian and Italian.

Cable reel

Meter counter：Digital meter counter

Material ：Fiberglass push rod cable

Cable diameter：7mm

Cable length ：40m

Reel size：35x9cm

What's Included:

33mm Camera head

13-inch LCD monitor

40m cable wheel

Plastic guides

Rechargeable Li-ion battery

Power adapter

Remote control

Manuals/Guides

U disk

Earphone

Testing Cable

Keyboard

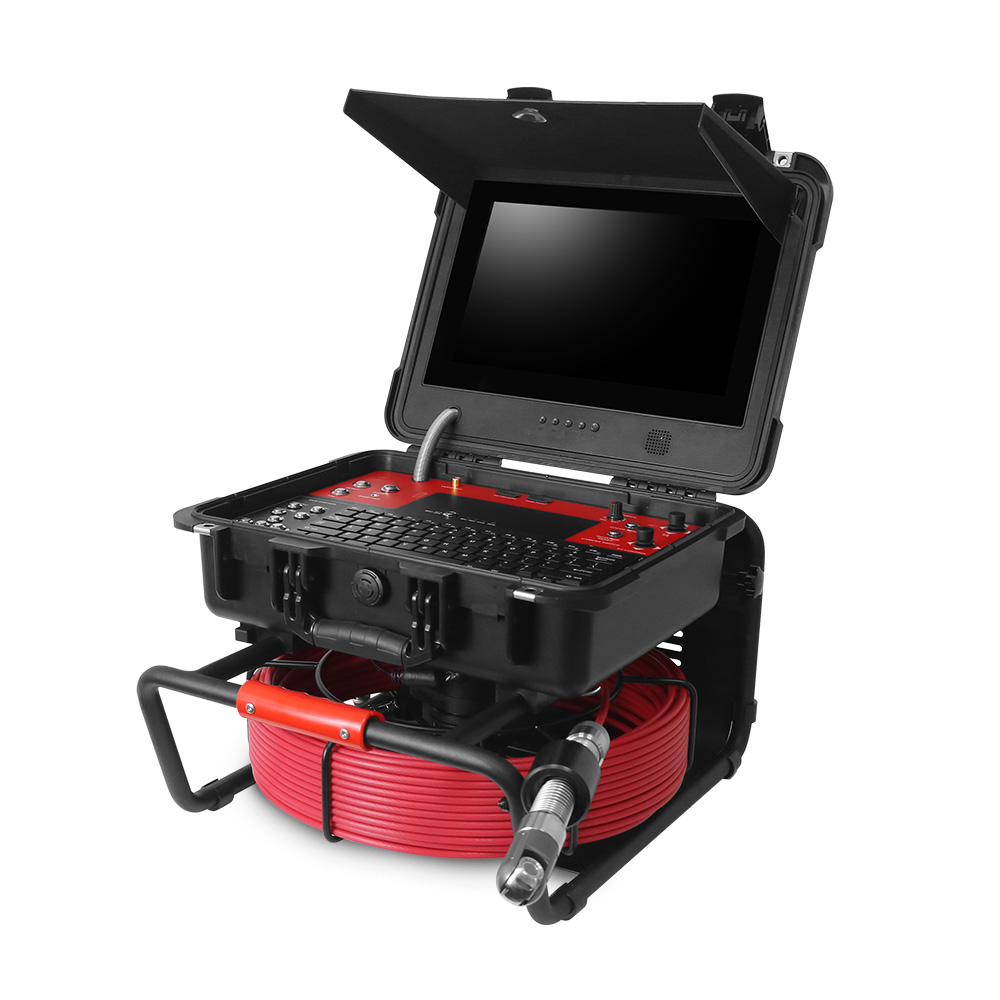

This Pan and Tilt Drain Camera features a micro-rotatable camera head, one-touch manual focus, and high-definition image outputs, making it ideal for short-distance drain inspections. With full 360-degree rotation and 180-degree tilt, the camera head allows for comprehensive scanning inside pipes. The one-touch manual focus ensures fast, precise adjustments for sharp images at various distances, while high-definition outputs provide superior visual clarity.

It is a lightweight, easy to carry, rugged, and waterproof inspection camera. This camera has a standard keyboard, secure internal storage for accessories, and a completely removable control box for limited space areas. Control box is waterproof with cover closed and latched. featuring a 40m/130ft flexible push cable and an inspection range for pipe diameters from 2" to 12"(50mm to 300mm).

This camera is particularly valuable for plumbers, contractors, and pipe inspectors, optimizing the inspection process with accurate visuals of small pipes and lateral dimensions.
